64 - 66 Mustang Power Rack and Pinon Kit, Small Block

(0) Reviews: Write first review
UNI-8010890-01

1964 - 66 Mustang Unisteer Power Rack and Pinion Steering, Small Block

Improve the steering on your classic Mustang with Unisteer's Vintage 1964 - 1966 V8 Power Rack & Pinion Kit. These kits will greatly increase handling, responsiveness, road feel, and decreases steering effort. See Below for More Information.

Sold as KIT

Was: $2,180.00
Sale: $1,962.00
Save: 10%
Save: $218.00

Customize Your Item

- Choose your Column Shaft -
 * required
- Choose your Pulley -
 * required
- Choose your Spindles -
 * required
Qty:
FREE SHIPPING on orders *$199 or more

Special Notes

These Unisteer Rack and Pinion Steering kits will greatly increase handling, responsiveness, road feel, and decrease steering effort of your Classic Mustang.

Improved Steering Geometry- The Unisteer rack and pinion is engineered to improve on the factory suspension eliminating bump steer issues while maintaining the correct Ackerman angle.

Has Good Clearance - The Unisteer kit works with a large variety of engine, transmission and header configurations. Also clearing the factory Z-bar clutch linkage is not an issue.

True Bolt In Design- The kit is a true bolt on system using factory holes to mount the kit, requiring no cutting, drilling, or welding.

This is a center take-off style rack and pinion that utilizes an offset ball center bar which duplicates the stock center link; meaning the rack matches the exact geometry of the original front suspension. This effectively eliminates bump steer, and creates fantastic handling.

The rack comes mounted to a one piece mounting bracket which replaces the tubular cross member located directly behind the front suspension. Since the racks are center take-off style, we off set the rack on the mounting bracket; moving the pinions closer to the driver-side frame which makes connection of the steering linkage to a column as easy as possible.

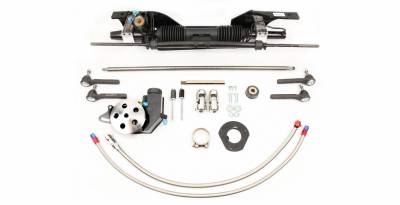

Kit Includes:

  • Rack & Pinion
  • Mounting Bracket
  • Outer Tie Rod Ends
  • Steering Shaft Kit
  • Pump & Line Kit
  • Mounting Hardware

Technical Notes

Early Mustang Split Mid 1967 and are slightly different, make sure you order the correct kit! Later model Mustangs and Cougars may look the same, but are NOT!

The kit will work on Small Block cars, and have been successfully used with Stock Manifolds, and Hooker Super Comp Headers. Tri-Y Headers have worked with 289, and 302 engines. Other Headers may work, but we can't guarantee an easy install. This kit may require some modifications on Mustangs with Dart Heads and other Aftermarket Heads requiring different headers. Some aftermarket headers will not clear with the steering linkage depending on the design. Please call us if you have any concern about clearances.

Please Note:  This kit requires the use of a mini starter for clearance with the main support cross member. Granada Spindles have been used on these cars. Please indicate this to us with the options menu above, so we can swap the outer ends you will need.

Tech Info:

  • Pinion Type / Size: 17mm DD
  • Amount of Travel: 6"
  • Turns Lock to Lock: 5 - 2.75 Turns
  • Pressure Port Size: 18mm - 6AN
  • Return Port Size: 16mm - 6AN
  • Pump Required: Matched to Gear
  • Inner End Threads: 9/16" - 18
  • Outer ends: 8021120 / 8021300
  • Granada Outer Ends: 8021250

Warranty

The Manufacturer, UniSteer, stands behind their products with an unlimited mile, 2-year warranty.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 60.0 lbs.
  • W14.0000” x H11.0000” x L52.0000”
  • FREE SHIPPING on orders *$199 or more
  • This item ships in its own box.
