65 - 70 Mustang Coil-over IFS Kit - Show Package

230-2204-12

65 - 70 Mustang TCI Coil Over Independent Front Suspension

This Is The New Custom IFS Weld In Show Suspension Package For 65 - 70 Mustangs And 67-68 Cougars From Total Cost Involved Engineering. This Kit Will Make Your Classic Mustang Handle More Up To Par With A Modern Sports Car. Read Below For More Info.

Sold as KIT

Special Notes

Note: The kit includes the options shown on the right, excluding the Air Ride Option.
The kit includes the following components:
(All underlined items are upgrades included in the show package)
  • Frame Rail Reforcement Plate Kit
  • Flattened Shock Mounting Towers
  • Custom TCI CHROME Dropped IFS Spindles
  • Steel Inner Fender Panel Kit with Hardware

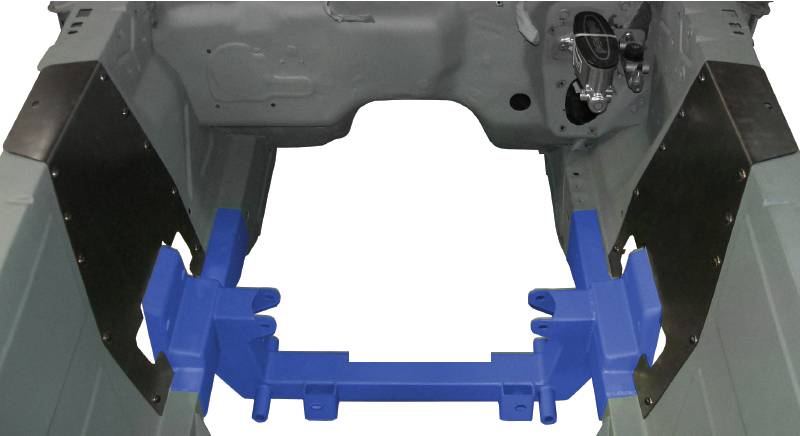

  • Jig Welded Crossmember
  • RideTech Coil-Over Shock Package with 26 Position Adjustable Rebound Setting
  • Urethan Bushed Tubular POLISHED STAINLESS Upper and Lower A-Arms
  • Custom 11" Drilled/Slotted Zinc Washed Disc Brakes POLISHED BILLET CALIPERS & POLISHED Backing Plates
  • Manual Rack and Pinion Steering (Upgrade to Power for only $99 More)
  • CHROME Steering Tie Rod Ends and Extensions
  • Sway Bar Kit (Free With Kit!!)
  • Adjustable Motor Mounts (Free With Kit!!)
  • Full Detailed Instruction Manual With Pictures and Desciptions at Every Step.

Plus, The Rotors, Spindles and Brake units come pre-assembled with bearings packed with High-Temp Grease!

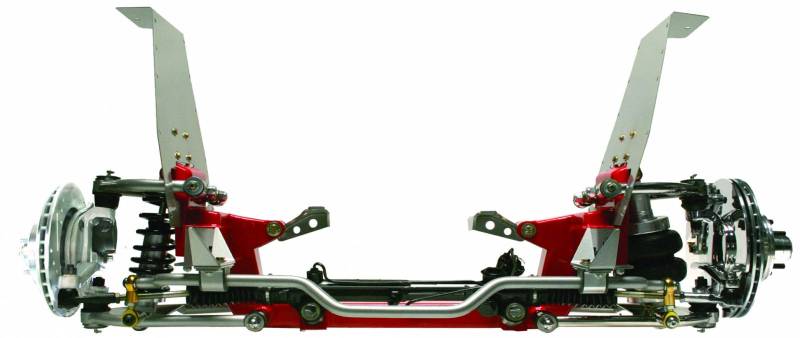

PLEASE NOTE: This kit will have the same upgraded options as the RIGHT side of the product picture. (DOES NOT INCLUDE THE AIR RIDE SHOCKWAVES) See below for upgrade.
12" & 13" Performance Brake Kits, Triple Adjustable Coil-Over Upgrades Are Available!!

Please give us a call before ordering so we can answer any questions you may have or to make sure this system will be appropriate for your application and engine configuration.

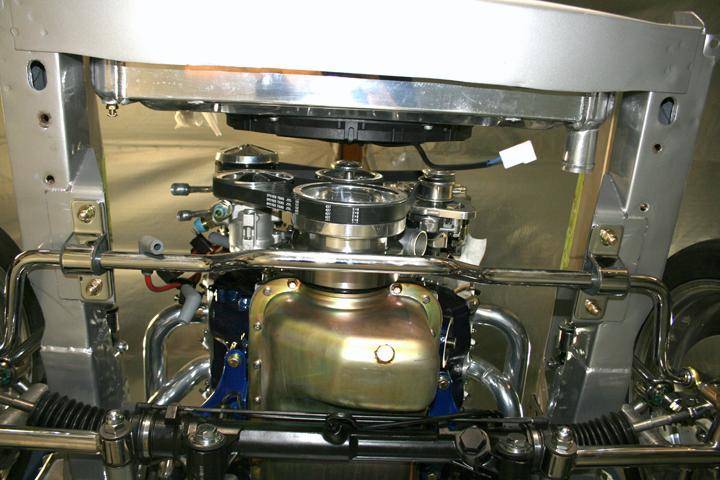

Note: This kit will require the use of a Fox Body Style rear sump oil pan to clear the weld-in cross member. This kit will come unpainted so you can paint the parts to match your Mustang's color scheme.

Technical Notes

COMPLETELY FREE SHIPPING FOR A LIMITED TIME ON THIS KIT TO ANYWHERE
IN THE 48 STATES!! PLUS, YOU WILL GET A FREE CHROME SWAY BAR KIT, INNER FENDER PANELS & ADJUSTABLE SMALL BLOCK ENGINE MOUNTS!!
***KIT NOW COMES WITH DRILLED/SLOTTED ZINC COATED ROTORS, WILWOOD 4 PISTON POLISHED CALIPERS AND RIDETECH COIL-OVERS FOR NO EXTRA CHARGE!!

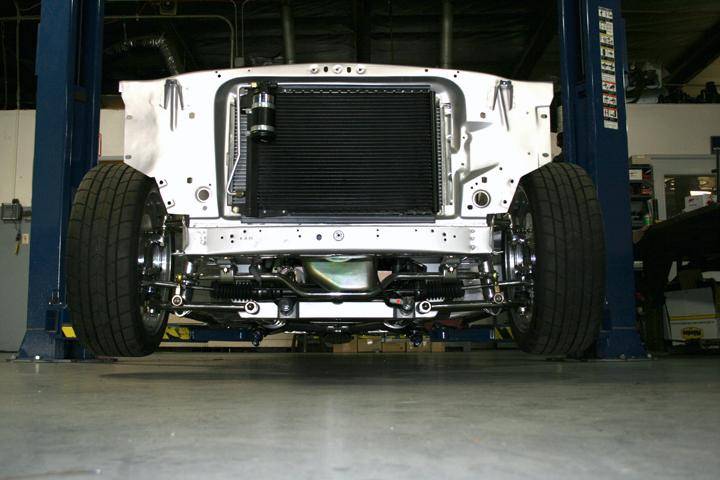

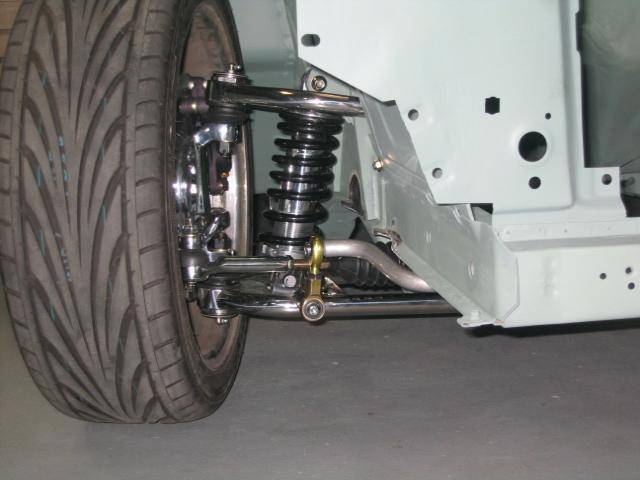

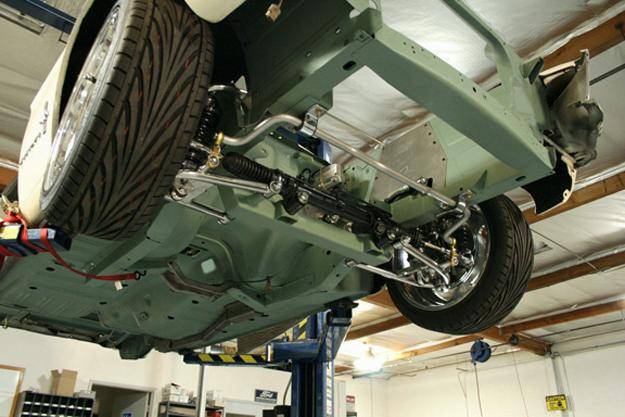

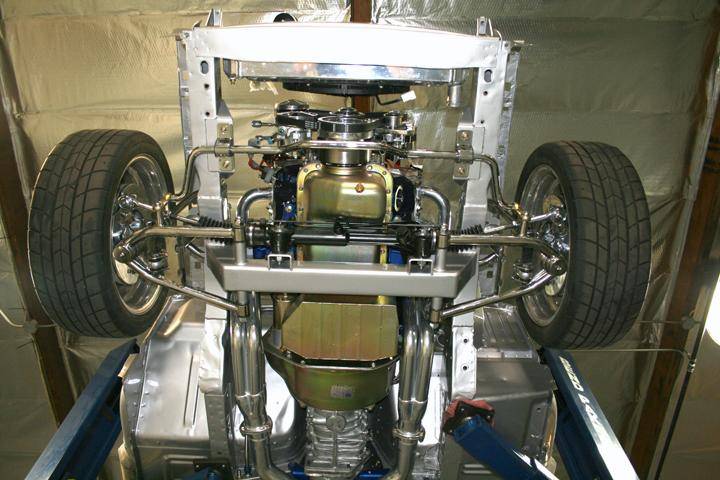

This is the NEW custom IFS weld in suspension package for 65 - 70 Mustangs and 67-68 Cougars from Total Cost Involved Engineering (TCI) offered by Stang-Aholics, LLC. This TCI Suspension system will open up the engine compartment for header clearance and will help with more clearance for big block and small block engines. This is not a Mustang II type front suspension system. It uses shims to align the upper A-Arms instead of a slotted adjustment that the Mustang II kits have. So, your front suspension can never slip out of alignment! Along with opening up the engine compartment, this kit will allow you to lower your Mustang about 2 Inches in the front with the included adjustable coil-over shocks. The forward mounted rack and pinon will allow for better long and short tube header clearances over a rear mount rack and pinion. This kit will also help to eliminate the bump steer issues that plague the classic Mustang steering so your Mustang will finally track straight over the bumps in the road The late model power or manual rack and pinion system will allow you to enjoy precise steering with alot less effort. The 11" Vented Disc brake kit will greatly improve your car's stopping ability enabling you to stop on a dime! Overall this kit will fix many of the design flaws that the classic Mustang steering and suspension suffers from and allow you to drive and enjoy your classic Mustang like never before.
