64 - 66 Mustang TCP G-Bar 4 Link Suspension, POLY EYE

(0) Reviews: Write first review
TCP-5800-M10

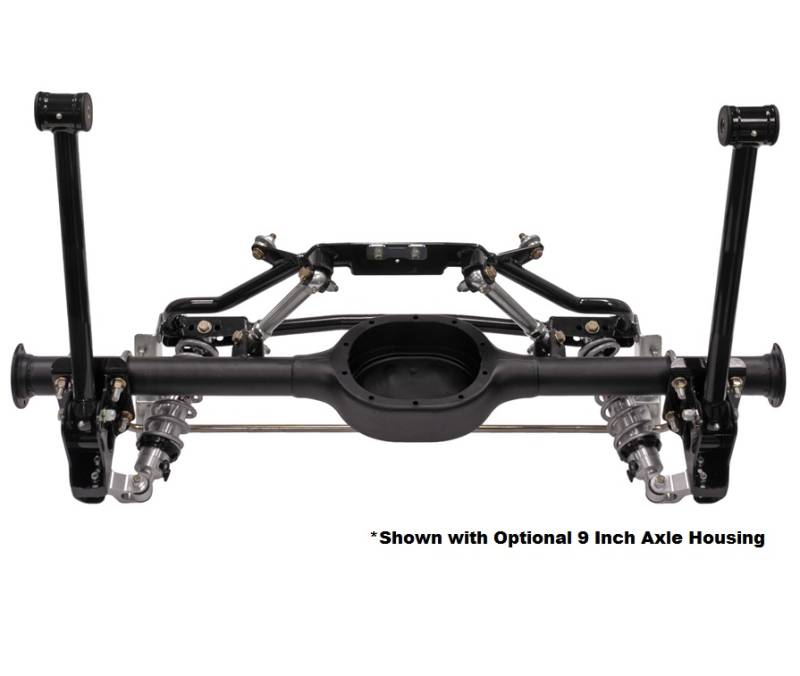

64 - 66 Mustang TCP 4 Link Suspension, G Bar, Poly Eye

Fits 1964 1965 1966 Mustang. This is the Polyurethane Eye G-Bar 4 Link rear suspension kit from Total Control Products. This triangulated 4 Link features fixed Length lower control arms with polyurethane bushings & Single Adjustable Varishock CoilOvers.

Sold as KIT

Shipping: This Item Ships Oversize due to box dimensions. Shipping calculated during checkout.
Pricing: $2,438.00

Customize Your Item

- Choose your Control Arm Bracket -
 * required
- Optional Anti-Roll Bar -
 * required
- Rear Coil Over Valving & Style -
 * required
- Rear Spring Rate -
 * required
- UCA Bracket Weld Fixture -
 * required
- Upper Link Adjustment -
 * required
- Type of Lower Shock Mount Bracke -
 * required
Qty:

Special Notes

Total Control's second generation G-Bar systems represent the current state-of-the-art in canted-4-bar suspension design.
Features & Benefits:
Adjustable Geometry
Mounting brackets feature multiple positions to adjust chassis anti-squat and optimize vehicle handling. Upper links are length adjustable to set pinion angle and suspension preload if needed. G-Link lower arms are fixed lenth non-adjustable with polyurethane bushings. NOTE: For Adjustable Higher Performance Lower Control Arms, Please see the G-Link PIVOT BALL Rear 4 Links)

Adjustable Shock Mounts
Billet aluminum double shear lower shock mounts bolt directly to the back of the lower control arm bracket and provide 4-1/2 inches of ride height adjustment. The three-position upper shock mount allows additional ride height adjustment, with the ability to provide increased stiffness for improved cornering or softer ride without changing springs.
VariShock Coil-Overs
A traditional coil-over configuration enables the ability to accurately corner-balance the vehicle by varying spring preload, and offers predictable suspension tuning results. A selection of spring rates, ranging from 110 to 350 lb/in., are available to match your vehicle's performance requirements.

Technical Notes

G-Bar 4 Link (Polyurethane Eye) System - Provides Greatly Improved Handling for the Street over Stock Leaf Spring Systems.

Kit Includes: g-Bar cradle, axle brackets, adjustable upper links with Polyurethane bushings, Non-Adjustable Fixed lower links with polyurethane bushed ends, VariShock single-adjustable coil-overs, springs, and mounting hardware.

IMPORTANT: Kit is designed to work with you factory 9 Inch Housing or you can order a new Fab-9 High performance housing (Give us a call for Pricing). Kit comes standard with U-Bolt kit for attachment to housing. Weld-on brackets are available ($40 Upgrade) for high performance applications.
**Weld Fixture for the Upper Control Arm mounts is available and HIGHLY RECOMMENDED (See Recommended Products Below)

Control Arm Note: The Poly G-bar four link systems include a non-adjustable lower
control arm (LCA) design. In this system, ride height adjustments can create small
changes in wheel base (1/4 to 3/4 of an Inch). If you want to be able to effectively adjust for such changes, we recommend the adjustable length LCA included in the Pivot Ball 4 Link System. (Part # TCP-5804-M10)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 100.0 lbs.
  • W48.0000” x H19.0000” x L11.0000”
  • $50.00
  • This item ships in its own box.
  • This item will require a special quote for shipping charges.
  • This Item Ships Oversize due to box dimensions. Shipping calculated during checkout.
