64 - 73 Mustang Anti-Roll Bar for Panhard Bar System
TCP-PHA-M10
1964 - 1973 Mustang Anti-Roll Bar for TCP's Panhard Bar System
Anti-Roll Bar for Panhard Bar System - Fits 64-73 Mustang and 64-73 Cougar with leaf spring suspension. Features sliding-link adjustment to increase or decrease anti-roll bar stiffness. Requires TCP Panhard Bar (TCP-PHL-M10) for installation.
Sold as EACH
Pricing:
$562.00
Special Notes
Sliding-Link Adjustable Anti-Roll Bar

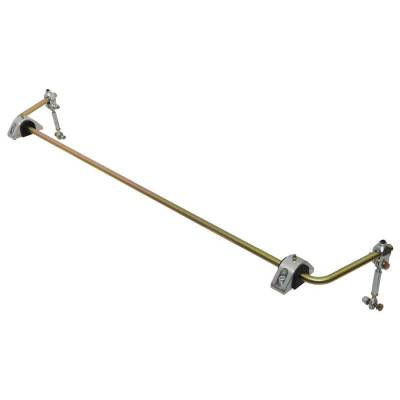

The sliding-link anti-roll bar features a 5/8??-diameter, solid bar with chassis mounts integrated into the panhard bar frame brackets and housing mounts located on the panhard bar leaf spring plates. Billet-aluminum bushing housings feature a greasezerk fitting, and black-polyurethane bushings with internal grease passages. Our unique sliding-link mechanism, utilizes three distinct indents at each end of the anti-roll-bar lever to create six incremental adjustments. The CNC-machined clevis is locked into each detent by a set screw and jam nut, preventing unintended sliding or twisting of the assembly. Links consist of 3/8?? rod-ends, allowing the anti-roll bar to be precisely set to a neutral, non-preload condition.
Note: Panhard bar (TCP-PHL-M10) and driver-side spring plate (TCP-PHS-M10) are required for installation of this product.
The sliding-link anti-roll bar features a 5/8??-diameter, solid bar with chassis mounts integrated into the panhard bar frame brackets and housing mounts located on the panhard bar leaf spring plates. Billet-aluminum bushing housings feature a greasezerk fitting, and black-polyurethane bushings with internal grease passages. Our unique sliding-link mechanism, utilizes three distinct indents at each end of the anti-roll-bar lever to create six incremental adjustments. The CNC-machined clevis is locked into each detent by a set screw and jam nut, preventing unintended sliding or twisting of the assembly. Links consist of 3/8?? rod-ends, allowing the anti-roll bar to be precisely set to a neutral, non-preload condition.
Note: Panhard bar (TCP-PHL-M10) and driver-side spring plate (TCP-PHS-M10) are required for installation of this product.
