67 - 70 Mustang Aluminum Radiator Kit, with Dual Fans, 5.0 Coyote Engine Swap

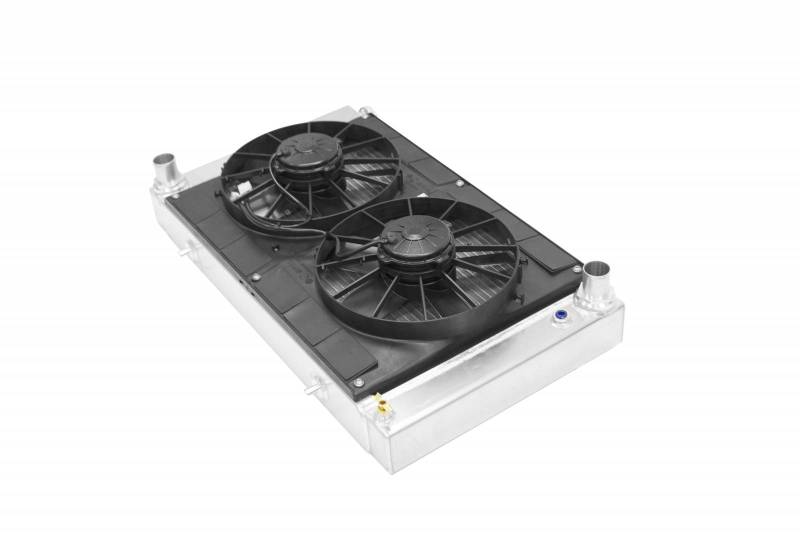

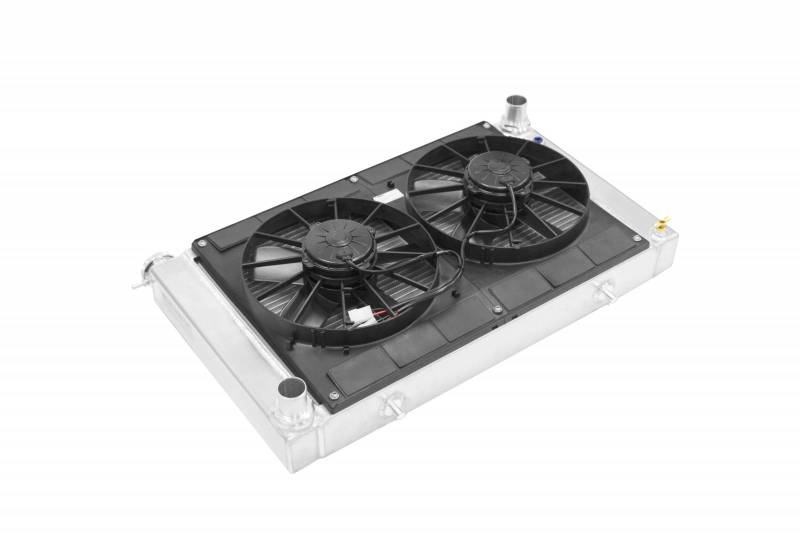

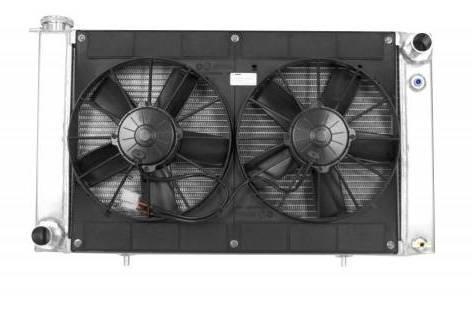

1967 - 1970 Mustang Aluminum Radiator Module for 5.0 Coyote with 11" Dual Spal Puller Fans and Fan Shroud Kit
C&R’s Aftermarket Radiator Modules are Made in the USA using the latest aluminum core designs and manufacturing techniques for optimum cooling. They are built by the finest metal fabricators & welders in the industry. This coyote swap radiator for the 67-70 Mustangs provides excellent cooling for street and performance applications. The 11" Spal Electric dual puller fans pull approximately 2900 CFM when both fans are on, and will provide excellent cooling when car is idle in traffic or when an A/C System is installed.The slim design of these radiator and fan package will provide excellent clearances at the front of the engine to allow space for a front drive kit and air inlet tube clearance. This radiator mounts to the stock 67-70 Mustang core support with only a few holes that needed to be drilled to allow the bottom pins to install. The side bracket mounting system provides a an excellent way to mount the radiator without the use of the stock saddles. The radiator is made with Pride in the USA of the finest quality materials and the best performance designs on the market.
Sold as KIT
Special Notes
This is a direct bolt into 1967-1970 Mustang Core Support. It is designed with a unique mounting system for a clean and easy installation. The lower mounting points are hidden underneath the radiator using a pin mount system. The upper mounting points attach to the core support with flanges. Only requires the installer to drill a few holes. Does not require the use of traditional saddles that can pop out of place. Because of the width of this radiator, it is a true crossflow design with side tanks for the best cooling performance. Comes as shown with the 11 in Spal Dual Fan with Shroud. It pulls close to 3,000 CFM when both fans are on generating excellent airflow when at idle for cars with AC and other performance add-ons. Made in the USA
Special Note: Due to the width and side tanks the battery must be relocated elsewhere.
SPECS:
Number of Passes: Single Pass
Inlet Location: Upper passenger side
Inlet Size: 1.50 in
Outlet Size: 1.50 in
Outlet Location: Lower driver’s side

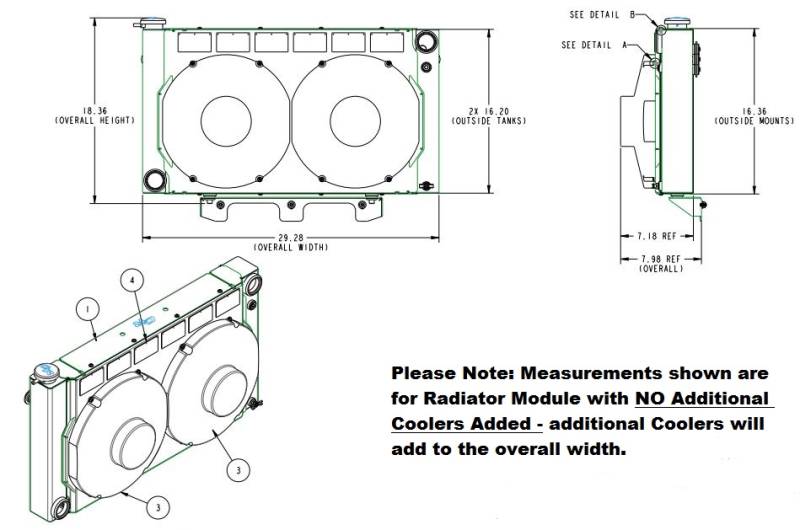

Overall Radiator Width: 29.28 inches
Overall Radiator Height (Not Including Filler Neck/Cap): 16.20 inches
Overall Radiator Height (Including the Filler Neck/Cap): 18.36 inches
Radiator Depth: 3.03 inches
Radiator Depth with Fans/Shroud Mounted: 7.18 Inches (the deepest point on fan motor)
Details
- CRR-15-1155
- CRR-15-1155
- C & R Racing
- New
Shipping Information
- Item Requires Shipping
- 35.0 lbs.
- W13.0000” x H38.0000” x L24.0000”
- $69.00
- This item ships in its own box.
- Flat Rate Shipping Applies to this item.
