67 - 70 Mustang 6 Cylinder Aluminum MaxCore Radiator (OE Style 2 Row Performance)
1967 - 1970 Mustang 6 Cylinder Aluminum MaxCore Radiator (OE Style 2 Row Performance) 69-70 Without A/C

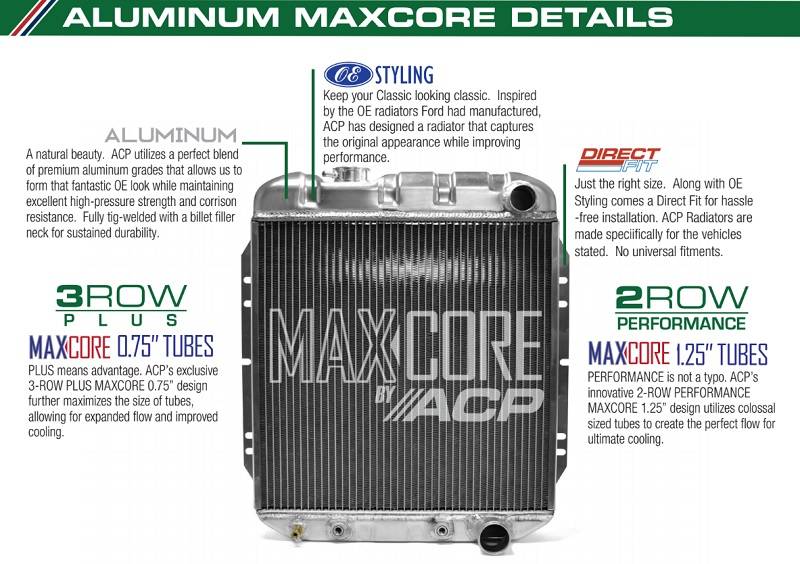

Keep your Classic Looking Classic with the Aluminum MaxCore Radiator. It's OE style was inspired by the original Ford radiators but added improved performance. It is just the right fit and made specifically for the year ranges stated for a hassle free install. This radiator is fully tig welded with a billet filler neck for durability. The Maxcore 2 Row Performance Radiators also maximize the size of the tubes to a whopping 1.25" allowing for perfect flow for the ultimate performance cooling!
Sold as EACH
Technical Notes
Product Specifications:
- OVERALL DIM (W x H x D): 20 1/2" x 21 3/8" x 3"
- CORE SIZE (W x H x D): 20" x 16 1/2" x 2 5/8"
- INLET DIAMETER: 1 1/4"Top Right
- OUTLET DIAMETER: 1 1/4" Bottom Left
- MOUNTING TYPE + WIDTH: Flange - 21 1/2"
- TUBES PER ROW: 1 1/4"
- TUBE SPACING/FIN HEIGHT: 49
- TUBE SIZE: 5/8"
- FINS/INCH: 16
- A/T COOLER: Yes
Product Features:
- Left Hand Outlet Type 2-Row Performance 1.25” design utilizes colossal size tubes for the ultimate engine cooling
- Perfect OE-Style blend of Premium Aluminum grades for excellent high-pressure strength and corrosion resistance
- Fully TIG welded with a billet filler neck for sustained durability
- Direct to Fit OE-Style radiator with hassle-free installation
- Exceeds the performance of the factory original and a 4-row copper radiator
Warranty
All Classic Parts, Inc. (ACP) warrants its products with a limited one year warranty from the date of purchase to be free from all defects in material and workmanship.
The limited warranty is void if the product is subjected to misuse, negligence, or operating conditions other than those for which the product was designed, or has been repaired or altered outside the supervision of ACP. This warranty does not cover the physical or chemical effects of any corrosive process occurring within the operating environment of the product. This warranty is extended to and enforceable by only the original retail purchaser.
ACP products should not be installed in any application where the warning lights and/or gauges have been made inoperative or are ignored during operation. These devices are meant to alert the operator of pending emergency conditions before internal engine damage occurs. Failure to monitor these devices is considered to be operator neglect and is not a basis for warranty.
If the product fails due to a defect in material or workmanship, the original purchaser shall be responsible for returning the defective product and a COPY of the ORIGINAL PURCHASE RECEIPT to an Authorized ACP Dealer with all transportation expenses prepaid by purchaser, and by which the examination by ACP shall disclose to have been defective to verify the cause of the product failure.
Defective product MUST be returned freight prepaid. All risks of loss or damage are retained by the consumer while the goods are in the possession of the freight carrier en route to the Authorized ACP Dealer.
Replacement of the product at our sole discretion shall be the ONLY REMEDY to which ACP is obligated, and to which the original retail purchaser is entitled. Purchaser’s remedy does not include reimbursement for any expenses incurred for labor or material charges incident to the replacement, removal or installation of any product, product’s core or component part, towing charges, rental of replacement vehicle, injuries to persons or property and any other special, incidental, consequential or punitive damages.
ACP in no event shall be liable to the purchaser for direct, indirect, special or consequential damages or loss of production or loss of profits or claims of third parties against the purchasers, resulting from any cause whatsoever, including those resulting from the order or use of ACP’s products, and ACP’s sole liability to the purchaser for any cause of action, whether based upon negligence, contract or strict liability, shall be the replacement remedy set forth in the preceding paragraph.
Details
Shipping Information
- Item Requires Shipping
- 19.0 lbs.
- W25.0000” x H8.0000” x L26.0000”
- FREE SHIPPING on orders *$199 or more
- This item ships in its own box.
