2005 - 2020 Mustang Shelby Venom Wheel 20 X 10.5

(0) Reviews: Write first review
VENOM20.10.5

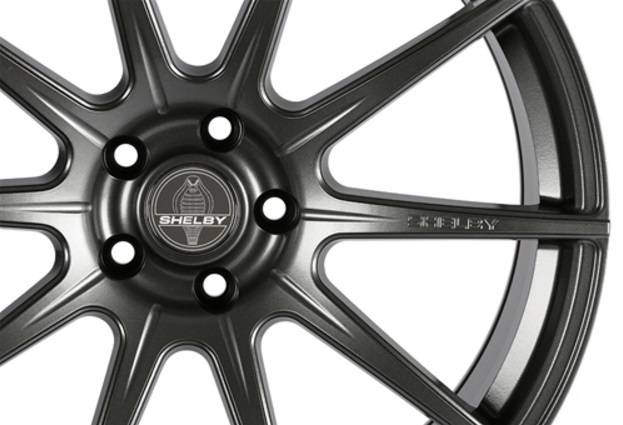

2005 - 2020 Mustang Shelby Venom 20 x 10.5 Wheel (DOES NOT FIT A 2016-2018 GT350/GT350R)

Fits: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 and 2020 Mustangs but DOES NOT FIT A 2016-2018 GT350/GT350R. Shelby's New VENOM Wheels Offer Great Style And Strength. Manufactured by WELD Racing exclusively for Shelby American, the wheel uses a flow-formed technology making it lighter and stronger to an equivalent wheel. Measurements: 20 X 10.5

Sold as EACH

Shipping: Item Ships direct from Vendor
Pricing: $434.99

Customize Your Item

- Choose your Wheel Finish -
 * required
- Change your Wheel Size -
 * required
Qty:

Special Notes

Why Flow Form Wheels?

Flow form wheels are stronger, lighter, increase shock load resistance, and offer increased flex tolerances verses a cast manufactured wheel. The primary difference between a cast and flow-formed wheel is the thickness of the wheel barrel. The flow forming process increases the strength of the aluminum allowing the barrel to be produced much thinner and lighter than a conventional cast aluminum wheel.

The Venom Wheel comes in 19”x 9” (22.4 lbs), 19”x 9.5” (23.5 lbs), 20” x9.5" (24.5 lbs) and 20”x10.5” (24.7 lbs).

Available in matte black powder coat, anthracite (darker gray), and silver colors. This is a Lug Centric Wheel Design.

OFFSETS

Wheel Size      Front Space    Back Space    Overall Width    Calculated OFFSET
19 x 9   3.62 6.40 10.02 35
19 x 9.5   4.16 6.39 10.56 28
20 x 9.5   4.11 6.35 10.44 29
20 x 10.5   3.68 7.76 11.43 52

Note: Purchase of aftermarket lug nuts required. The stock lug nuts will not work.

DUE TO THE MANY BRAKE PACKAGES AND CONFIGURATIONS, THESE WHEELS MAY NOT CLEAR THE CALIPERS IF YOU HAVE AN EXTREME AFTERMARKET/PERFORMANCE BRAKE SYSTEM AND/OR MAY REQUIRE WHEEL SPACERS.

IT IS ULTIMATELY THE RESPONSIBILITY OF THE INSTALLER TO INSURE PROPER CLEARANCE TO THE BRAKING SYSTEM, SUSPENSION, AND WHEEL WELLS, AND THAT THE WHEEL DOES NOT CAUSE DAMAGE TO THESE COMPONENTS (OR ANY COMPONENTS) OR THE WHEEL ITSELF.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 44.0 lbs.
  • W27.0000” x H15.0000” x L27.0000”
  • This item ships in its own box.
  • Item Ships direct from Vendor
