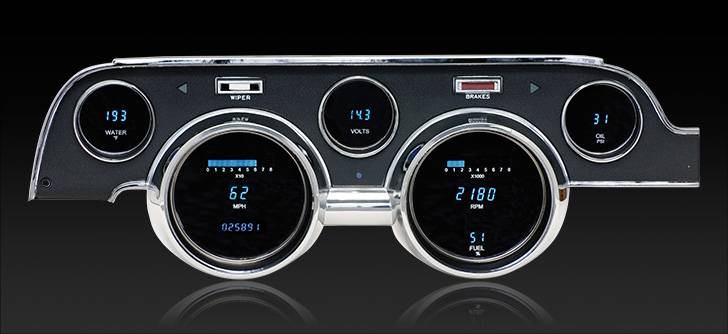

67 Mustang Digital Instruments, Dakota Digital

SKU: VFD3-67M

67 Mustang Digital Instruments series III from Dakota Digital

Outfit your 1967 Mustang with the latest technologies and features for your Custom Stang. With these digital instruments you will receive high brightness vacuum florescent displays that provide a lifetime of use while offering increased accuracy and features. Full 6 Gauge Instrument System-Water, Volts, Oil, MPH, RPM and Fuel, includes new reproduction bezel for 1967 Mustang! Note: Available with Brushed Aluminum or Black Camera Case Bezels. Limited Lifetime Warranty from Dakota Digital!

Sold as KIT

Was: $850.00

Sale: $807.50

Save: 5%

Save: $42.50

Customize Your Item

Please Select Color

- Please Select Color -

* required

Choose your Dash Bezel

- Choose your Dash Bezel -

* required

Please Select Add Ons

- Please Select Add Ons -

* required

Qty:

FREE SHIPPING on orders *$199 or more

Special Notes
Technical Notes
Details
Shipping
Documents
Reviews

Special Notes

Stang-Aholics is now offering Dakota Digitals Series III Digital Instrument Systems! These gauges will give your Mustang a custom and modern instrument design with accurate feature packed gauges unlike any others in the marketplace. Here are a few things that set these Digital gauges apart from the rest.

Series III Digital Gauge Features

Digital Display Read - No Needles - Makes them very Accurate and Easy to see at night
EASY to SEE - Makes the gauge information really crisp and easy to see at night!
Custom and Modern Look

These technologically advanced gauges are completely engineered and manufactured in the Sioux Fall facility in South Dakota! The Series have completely revolutionized the classic Mustang instrumentation industry! Get a set of Digital Dakota Digital gauges today for your 67 Mustang and see first hand, what this quality product offered by Stang-Aholics will do to improve your Mustangs interior!

Please Note: Instrument Bezel IS INCLUDED! Make your selection.

Technical Notes

Digital Gauges

Speedometer	0-255 MPH Split Scale Provides Resolution of a 120MPH speedometer, with a top end range of 160 MPH
Tachometer	0-17,500 RPM
Oil Pressure	0-99 psi
Water Temperature	0 - 300°F
Fuel Level	0 - 99%
Voltmeter	8-17 VDC
Standard Colors	Blue or Teal

Digital Message Centers

Standard Displays

Odometer (One Time User Settable, Million Mile)

Dual (A/B) Trip Meter (0 - 9,999.9)

Performance Meters

0 - 60 MPH Timer (0-100kmh)

1/4 Mile Time

1/4 Mile End Speed (Trap Speed)

High Speed Recall

High RPM Recall

Gauges

Speedometer (0 - 255 MPH/kmh) Opposite scale of main speedometer

Built-In Indicators

Indicators

Turn Sugnals (Left/Right)

High Beam

Check Engine

Parking Brake

Cruise Control (On/On & Engaged when vehicle is equipped)

Gear Position (Optional GSS-2000 sensor is required)

4 x 4 (When vehicle is equipped)

Wait to Start (When vehicle is equipped)

Included Sensors

Water Temperature	1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure	1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/ Generator	Replaces Ford and/ or GM style speedometer cables with a 10 ft harness.
Bushings	Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration and Use

Push Button Control

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
