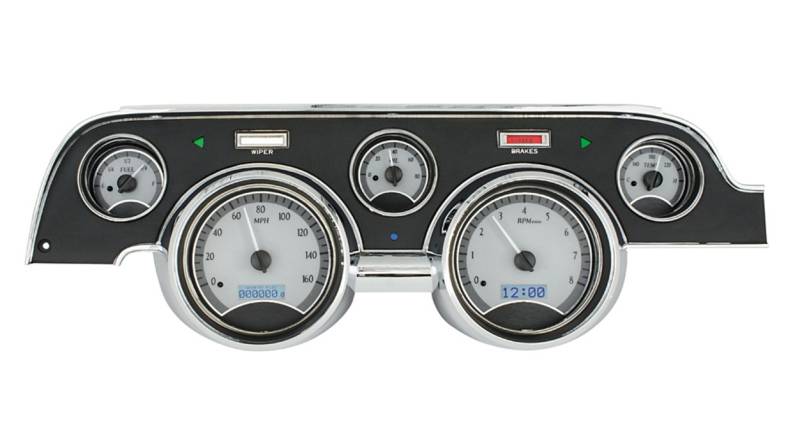

67 - 68 Mustang VHX Instruments, Silver Alloy Gauge Face
67 - 68 Mustang VHX Instruments, Silver Alloy Gauge Faces
1967 - 1968 Mustang Gauges VHX Instruments with Silver Alloy Gauge Faces. Direct fit in your stock instrument Bezel/housing! Fully lit needles, with modern looking back lit gauge faces, featuring an LCD message center, micro-controlled precision stepper motors, solid state sensors, and user customization display feedback all with a limited lifetime warranty from Dakota Digital! Bezel Sold Separately
Sold as KIT
Special Notes
The new VHX Gauge Systems will fit directly into the stock gauge housing of a 1967 or 1968 Mustangs. These gauges will give your Mustang a touch of modern instrument design with accurate feature packed gauges unlike any others in the marketplace. Here are a few things that set these VHX gauges apart from the rest.
VHX Instrument Cluster Features:
- Fully lit needles - Makes them very Easy to see at night
- Back lit gauge faces (instead of perimeter light) - back lighting the gauges like a modern vehicle, makes the gauge information really crisp and easy to see at night!
- Highly visible LCD back lit message centers
- Micro-controlled precision stepper motors
- Solid state sensors for unparalleled gauge accuracy
- User-customizable gauge display feedback
- Unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems.
The features above are what really sets the VHX series gauges apart from yesterday's traditional approach to classic car instrumentation.
These technologically advanced gauges are completely engineered and manufactured in the Sioux Fall facility in South Dakota! The VHX Series have completely revolutionized the classic Mustang instrumentation industry! Get a set of VHX Dakota Digital gauges today for your 67 - 68 Mustang and see first hand, what this quality product offered by Stang-Aholics will do to improve your Mustangs interior.
Please Note: Instrument Bezel not included, you can use your existing bezel or we can provide a new reproduction bezel to complete your gauge upgrade!
Technical Notes
Analog Gauges
| Speedometer | 0-160 MPH |
| Tachometer | 0-8,000 RPM |
| Oil Pressure | 0-80 psi |
| Water Temperature | 100-260°F |
| Fuel Level | E, 1/4, 1/2, 3/4, F |
| Voltmeter | Shown in Digital Message Center Only |
| Lighting | Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. |
Digital Message Centers
| Standard Displays |
Odometer (One Time User Settable, Million Mile) Dual (A/B) Trip Meter (0 - 9,999.9) Clock (12 Hour) |
| Performance Meters |
0 - 60 MPH Timer (0-100kmh) 1/4 Mile Time 1/4 Mile End Speed (Trap Speed) High Speed Recall High RPM Recall |
| Gauges |
Speedometer (0 - 255 MPH) Tachometer (0-9,900 RPM) Oil Pressure (0 - 100 psi displayed in 1 psi increments) Water Temperature (100-300°F/40-150°C displayes in 1 °F/°C increments) Voltmeter (9-17 VDC) Fuel Level (0-99% Full) |
| Lighting |
Auto-Contrasting LCD Display for optimal view in the brightest of sunlight. LED backlit at night to match/complete the look at night |
Built-In Indicators
| Indicators |
Turn Signal (L/R) High Beam Check Engine Parking Brake Cruise Control (On/On & Engaged when vehicle is equipped) Gear Position (Optional GSS-2000 Sensor Required) 4 X 4 (When Vehicle is Equipped) Wait to Start (When Vehicle is Equipped) |
| Water Temperature | 1/8" NPT, Ground Isolated Sensor with a 10 FT Harness |
| Oil Pressure | 1/8" NPT Solid State Sensor with a 10 Ft Harness |
| Cable Driven Speed Sensor/Generator | Replaces Ford and/or GM Style Speedometer Cables with a 10 FT Harness |
| Bushings | Each Kit Comes with 1/8" to 1/4", 3/8" and 1/2" NPT Bushings along with bushings for 12mm and 16 mm x 1.5 threads |
Included Sensors
Calibration
| PushButton | Instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers. |
Details
- VHX-67F-MUS-S
- VHX-67F-MUS-S
- Dakota Digital Gauges & Accessories
- New
Shipping Information
- Item Requires Shipping
- 8.0 lbs.
- W24.0000” x H14.0000” x L6.0000”
- FREE SHIPPING on orders *$199 or more
