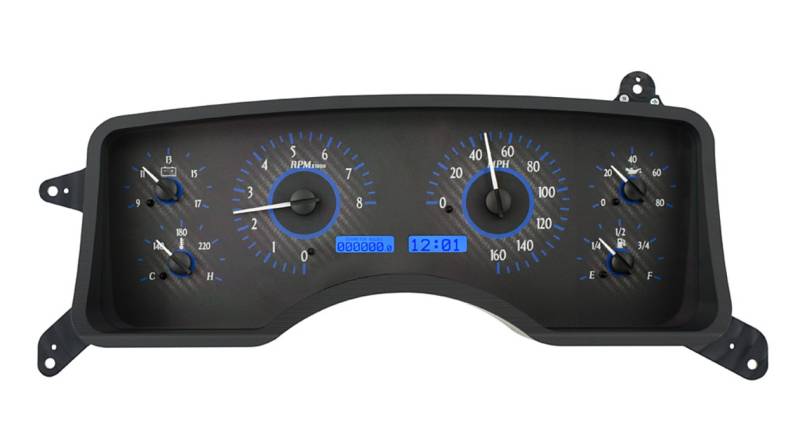

90 - 93 Mustang VHX Instruments, Carbon Fiber Look Gauge Face

SKU: VHX-90F-MUS-C

90 - 93 Mustang VHX Instruments, Carbon Fiber Looking Gauge Faces

1990 - 1993 Mustang Gauges VHX Instruments with Carbon Fiber Looking Gauge Faces. Direct fit in your stock instrument Bezel/housing! Fully lit needles, with modern looking back lit gauge faces, featuring an LCD message center, micro-controlled precision stepper motors, solid state sensors, and user customization display feedback all with a limited lifetime warranty from Dakota Digital! Bezel Sold Separately

Sold as KIT

Was: $925.00

Sale: $878.75

Save: 5%

Save: $46.25

Customize Your Item

Please Select Color

- Please Select Color -

* required

Please Select Add Ons

- Please Select Add Ons -

* required

Qty:

FREE SHIPPING on orders *$199 or more

Special Notes
Technical Notes
Details
Shipping
Documents
Reviews

Special Notes

The new VHX Gauge Systems will fit directly into the stock gauge housing of a 1990 1991 1992 1993 Mustangs. These gauges will give your Mustang a touch of modern instrument design with accurate feature packed gauges unlike any others in the marketplace. Here are a few things that set these VHX gauges apart from the rest.

VHX Instrument Cluster Features:

- Fully lit needles - Makes them very Easy to see at night
- Back lit gauge faces (instead of perimeter light) - back lighting the gauges like a modern vehicle, makes the gauge information really crisp and easy to see at night!
- Highly visible LCD back lit message centers
- Micro-controlled precision stepper motors
- Solid state sensors for unparalleled gauge accuracy
- User-customizable gauge display feedback
- Unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems.

The features above are what really sets the VHX series gauges apart from yesterday's traditional approach to classic car instrumentation.

These technologically advanced gauges are completely engineered and manufactured in the Sioux Fall facility in South Dakota! The VHX Series have completely revolutionized the classic Mustang instrumentation industry! Get a set of VHX Dakota Digital gauges today for your 90 - 93 Mustang and see first hand, what this quality product offered by Stang-Aholics will do to improve your Mustangs interior.

Please Note: Instrument Bezel not included, you can use your existing bezel or we can provide a new reproduction bezel to complete your gauge upgrade!

Technical Notes

Analog Gauges

Speedometer	0-160 MPH
Tachometer	0-8,000 RPM
Oil Pressure	0-80 psi
Water Temperature	100-260°F
Fuel Level	E, 1/4, 1/2, 3/4, F
Voltmeter	9 - 17 VDC
Lighting	Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers

Standard Displays	Odometer (One Time User Settable, Million Mile) Dual (A/B) Trip Meter (0 - 9,999.9) Clock (12 Hour)
Performance Meters	0 - 60 MPH Timer (0-100kmh) 1/4 Mile Time 1/4 Mile End Speed (Trap Speed) High Speed Recall High RPM Recall
Gauges	Speedometer (0 - 255 MPH) Tachometer (0-9,900 RPM) Oil Pressure (0 - 100 psi displayed in 1 psi increments) Water Temperature (100-300°F/40-150°C displayes in 1 °F/°C increments) Voltmeter (9-17 VDC) Fuel Level (0-99% Full)
Lighting	Auto-Contrasting LCD Display for optimal view in the brightest of sunlight. LED backlit at night to match/complete the look at night

Built-In Indicators

Indicators	Turn Signal (L/R) High Beam Check Engine Parking Brake Cruise Control (On/On & Engaged when vehicle is equipped) Gear Position (Optional GSS-2000 Sensor Required) 4 X 4 (When Vehicle is Equipped) Wait to Start (When Vehicle is Equipped)
Water Temperature	1/8" NPT, Ground Isolated Sensor with a 10 FT Harness
Oil Pressure	1/8" NPT Solid State Sensor with a 10 Ft Harness
Cable Driven Speed Sensor/Generator	Replaces Ford and/or GM Style Speedometer Cables with a 10 FT Harness
Bushings	Each Kit Comes with 1/8" to 1/4", 3/8" and 1/2" NPT Bushings along with bushings for 12mm and 16 mm x 1.5 threads

Included Sensors

Calibration

PushButton

Instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
