1964 - 1970 Mustang DSE Leaf Springs with Mini-Tub Kit

DSE-041231

1964 - 1970 Mustang Detroit Speed Complete Rear Mini-Tub Kit

This 1964 - 1970 Mustang Complete Detroit Speed Rear Leaf Spring Mini-Tub Kit Includes all the necessary parts for a complete project package in the rear of your Classic Mustang. Since this kit widens the rear wheel housing with the install of the new frame section and inner wheel tub, it will allow you to install up to a 315 rear tire in your 64 -66 Mustang and up to a 335 rear tire in a 67 - 70 Mustang. The high performance leafs springs included in the kit do an excellent job handling higher horsepower and torque loads and will lower your Mustang about 1 - 1.5 inches from stock height.The high performance shocks in the package will give your Mustang a smooth, yet controlled ride. Additional sheet metal parts in the kit and the beefy rear upper main cross member will all work to stiffen up the rear uni body of your Classic Mustang to enable the car to better handle higher torque loads in the rear.

Sold as KIT

Shipping: Shipping is an estimate if shipping differs from estimate you will be contacted before order is complete
Was: $2,737.00
Sale: $2,462.95
Save: 10%
Save: $274.05
Qty:

Special Notes

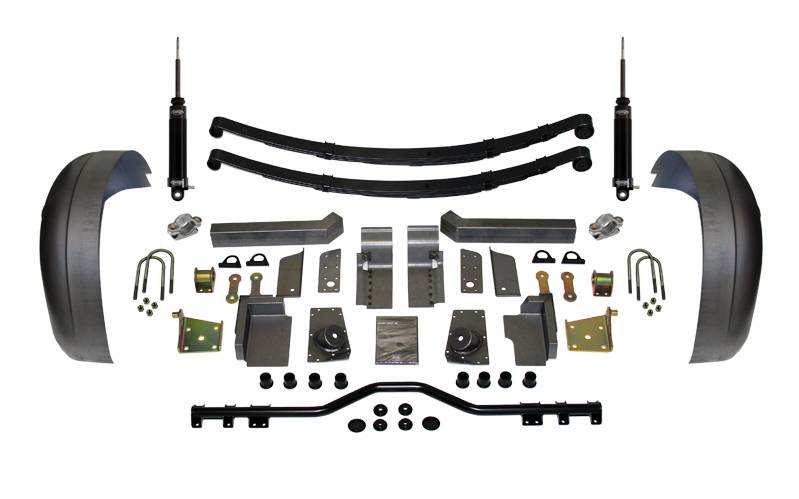

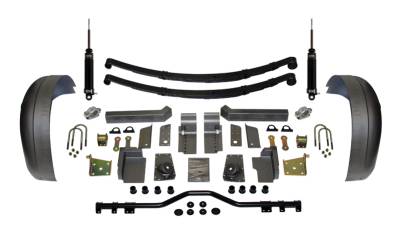

This complete Detroit Speed rear Mini-Tub kit includes:

• Mini-Tubs with narrow rear frame sections
• Lower Shock Plates
• U-Bolts with hardware
• Rear Support Tube
• Rear Upper Shock Mounts
• Rear Shackle Kit
• Detailed Installation Instructions
• Rear Leaf Springs  (High Performance Leafs Springs) Designed to lower 1-1.5 inches in the rear from stock
• Urethane Bushing Set
• New Replacement Rear Torque Boxes
• Adjustable Leaf Spring Pads
• Mini-Tub Shocks to compliment the performance leaf springs

IMPORTANT INSTALL NOTE: The factory fuel tank will not work with the DSE Mini-Tub Kit. DSE does offer a Mini-Tub Kit fuel tank for a carbureted or fuel injected engine for the 1964.5-1970 Mustang application.

Mini-Tub Fuel Tank Page

Note: The rear axle used with this kit requires 3” O.D. axle tubes.

Note: T
he rear valence on a 1965-66 Mustang GT will not work with the DSE Mini-Tub Kit.

Technical Notes

This mini tub kit will require you to modify your rear seat or do a rear seat delete. To keep your rear seat you would need to cut the frame in half and bring it in as you lose about 5.5" on the inside total, 2.25" on each side.

Details

Shipping Information

  • Item Requires Shipping
  • 178.0 lbs.
  • $175.00
  • This item will require a special quote for shipping charges.
  • Shipping is an estimate if shipping differs from estimate you will be contacted before order is complete
