Remote Oil Filter Kit for 5.0 Coyote Engine Swaps, Fits Gen 1 - 3
Remote Oil Filter Kit for Coyote 5.0 Engine Swaps In Mustangs and other Classic Cars
This Remote Oil Filter Kit will give you extra clearances and more flexibility with your oil filter and plumbing when swapping a GEN 1 2 or 3 Coyote Motor in your Classic Mustang, Later Model Mustang or other classic Car. When swapping to the Coyote 5.0 motor, clearances can be very tight between the oil filter and cross member or front sway bar. This can pose a problem, by not allowing the coyote motor to sit low enough and in a good position in the engine bay. This remote oil filter kit will allow you to remotely mount the oil filter away from the block, giving you the clearances and flexibility to clear items in the engine bay like Cross Members and front sway bars, etc. By lowering the Motor in the engine bay, it will allow for better hood clearances and transmission tunnel clearances when installing the Coyote Engine swap in your classic or Late Model Mustang.
ADDITIONAL BENEFITS INCLUDE: Option to plumb an external oil cooler and/or Temp & Oil Pressure Senders, OR an Accusump Oil Accumulator for Pre-oiling/surge protection for your Coyote Engine. See Notes on this Page for Additional Information and Details.
Sold as KIT
Special Notes
Additional Information about Main Components in the Kit:

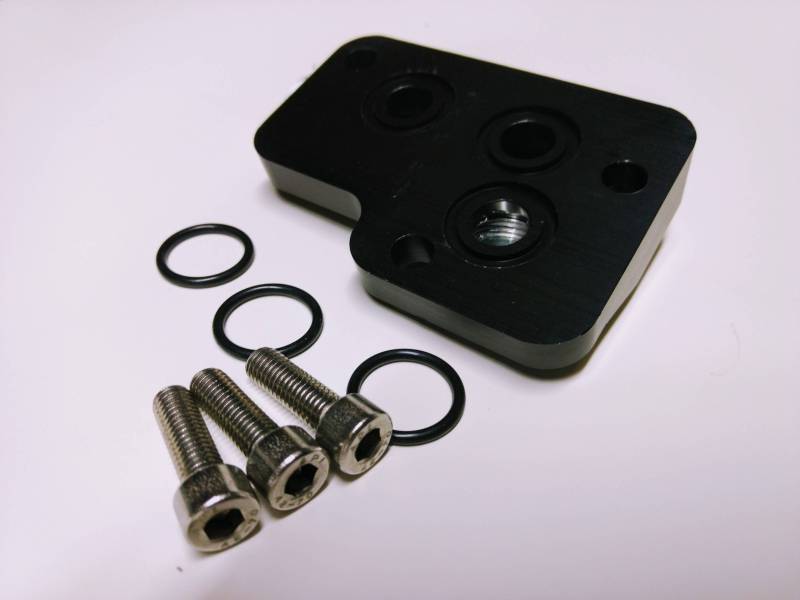

The black billet aluminum engine plate adapter is designed to replace the OEM style 5.0 Coyote filter plate in order to remote mount the engine oil filter away from the Coyote Block.
Engine Plate Adapter Features:
* 1/2" NPT Inlet Port
* 1/2" NPT Outlet Port
* 1/4" NPT Temp or Pressure Port
* 3/8" NPT Turbo Drain Back (Gen 2 Blocks Only)
* Engine Plate works with 1st and 2nd Gen Coyote Blocks (2011-2017)
* Machined Billet Aluminum
* Black Anodize Finish
* Hardware Included
* Made in the USA!

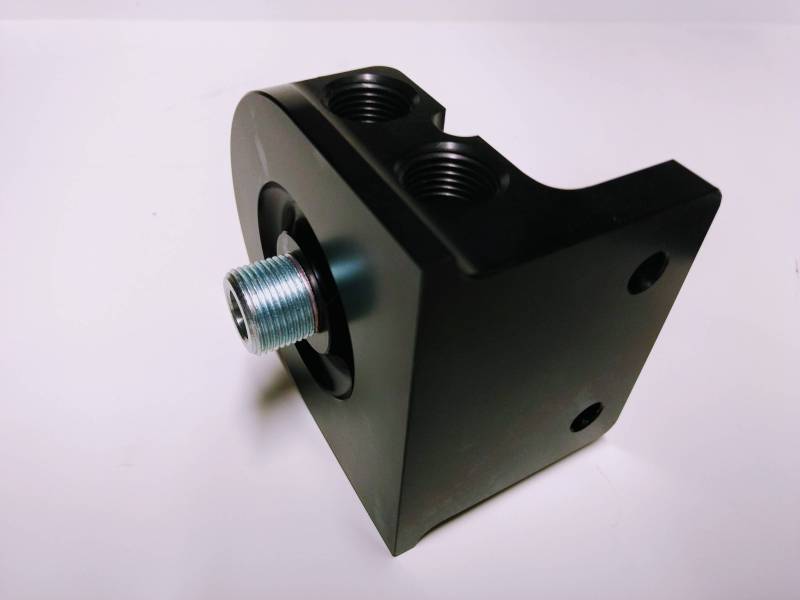

The billet aluminum remote spin-on filter mount/Bracket will accept the 22mm spin on filters. It's also designed for use in high performance applications. The machined bracket Includes two 1/2 inch N.P.T. in-ports and two 1/2 inch N.P.T out-ports. It can be plumbed right to left or left to right, for many plumbing options/configurations. The Unused ports on the bracket, can be used for a temperature or oil pressure sender, or even for an Accusump input.
Remote Filter Bracket Features:
*Designed for use in high performance applications
*Accepts 22MM spin-on oil filters
*Includes two 1/2" NPT; in-ports and two 1/2" NPT out-ports; Can be plumbed right to left or left to right, for many plumbing options/configurations
*The Unused ports on the oil filter bracket can be used for a temperature or oil pressure sender or even for an Accusump input.
*Made In USA!

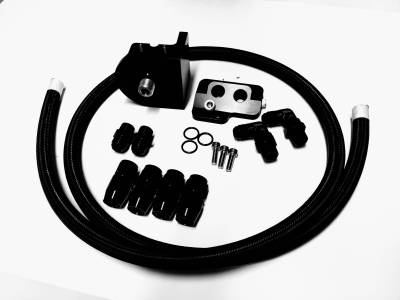

Kit Also Includes The Following Components for Plumbing:
-10AN Black Braided Nylon Hose, with High Grade CPE Inner Core (6 FT)
90 Degree Swivel Elbows
-10AN Straight Full Swivel Compression Hose Ends
Straight Flare to Pipe Adapter Fittings
Details
- SA-CE-ROF-K
- SA-CE-ROF-K
- Stang-Aholics
- New
Shipping Information
- Item Requires Shipping
- 5.4 lbs.
- W12.0000” x H6.0000” x L12.0000”
- FREE SHIPPING on orders *$199 or more
- This item ships in its own box.
