RTX Dakota Digital Instruments, OEM Styling, for 69 - 70 Mustangs
RTX Dakota Digital Instruments, OE Styled, for 1969 - 1970 Mustangs

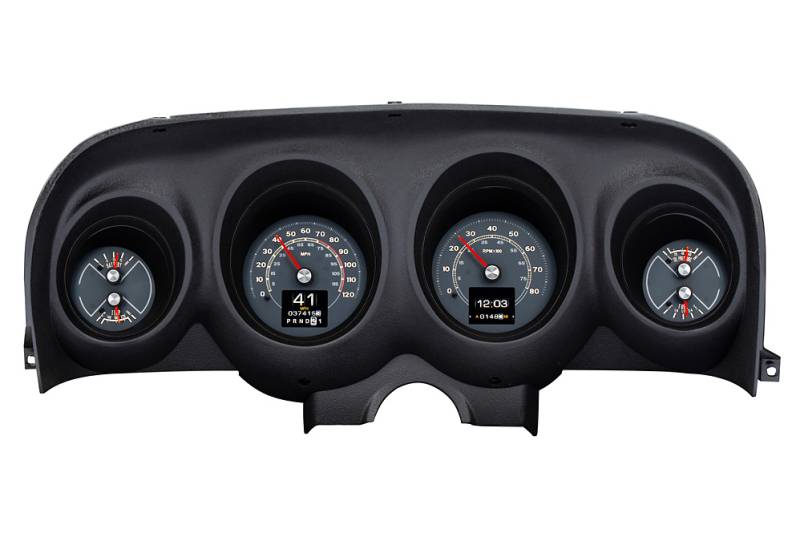

Outfit your 1969 - 1970 Mustang with an all new instrument system and purchase these Dakota Digital RTX Gauges to get the stock look but not sacrificing any of the modern features you love. These are a drop - in system and makes use of your stock or reproduction instrument housings and bezel. Full LED backlighting makes night visibility second to none, and the OEM styling will keep the vintage vibe you’re going for. The TFT message centers will keep you informed of under-hood happenings, and you can add the RLC clock to the passenger side for a complete upgrade. Optional Clock Shown is not included!
Sold as KIT
Special Notes
Stang-Aholics is now offering Dakota Digitals RTX Instrument Systems! These gauges will give your Mustang the OEM look without sacrificing modern features. Here are a few things that set these RTX gauges apart from the rest.
RTX Gauge Features
- TFT message centers- can be fully configured to display just about any piece of information needed
- RTX series utilizes a central control box to make installation and setup as easy as possible
- Retaining Stock Look without sacrificing the late-model features

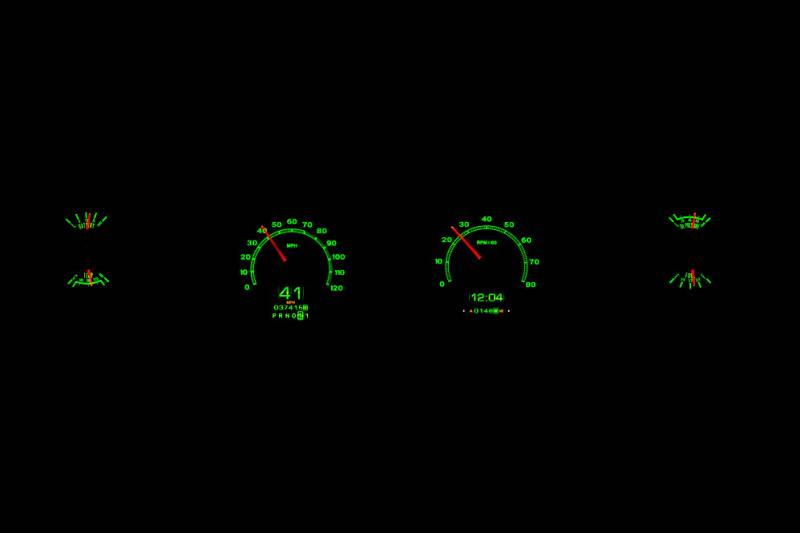

- LED Backlighting makes night visibility second to none
Get a set of RTX Dakota Digital gauges today for your 69 - 70 Mustang and see first hand, what this quality product offered by Stang-Aholics will do to improve your Mustangs interior!
Please Note: Instrument Bezel not included, you can use your existing bezel or we can provide a new reproduction bezel to complete your gauge upgrade!
Technical Notes
Analog Gauges |
||
| Speedometer | 0 -120 MPH (optional metric version 0- 200 kmh) | |
| Tachometer | 0- 8,000 RPM | |
| Oil Pressure | 0- 80 psi | |
| Water Temperature | 100- 260ºF (optional metric version 40- 120ºC) | |
| Fuel Level | E, 1/4, 1/2, 3/4, F | |
|
9- 17 VDC | |
Digital Message Centers |
||
| Standard Displays |
|
|
| Performance Meters |
|
|
Built-in Indicators |
||
| Indicators |
**Not all OEM indicator lamp functions will be replaced.
|
|
Lighting Technology |
||
| Colors | Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color. | |
| Brightness | Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality. | |
| Themes | With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself. | |
| Technology | Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice. | |
Included Sensors |
||
| Water Temperature | 1/8" NPT, ground isolated sensor with a 10 ft harness. | |
| Oil Pressure | 1/8" NPT solid state sensor with a 10 ft harness. | |
| Cable Driven Speed Sensor/ Generator | Replaces Ford and/ or GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. | |
| Bushings | Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads. | |
Calibration and Use |
||
| Pushbutton Control | Dakota Digital instrument systems are programmed and operated by the push of a button. A two-sided rocker switch is included with each package; mount this switch in an easily accessible location when in the driving position. The rocker switch provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center, or through the included buzzer. Once configured, this same switch is used to access the wealth of information located in the digital message centers. | |
| Mobile App | RTX instrument systems can also be completely configured through the available mobile app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the RTX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display. | |
| Calibration | All calibration settings are handled through the included pushbutton switch or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle. | |
Details
- RTX-69F-MUS-X
- RTX-69F-MUS-X
- Dakota Digital Gauges & Accessories
- New
Shipping Information
- Item Requires Shipping
- 7.0 lbs.
- W24.0000” x H14.0000” x L6.0000”
- FREE SHIPPING on orders *$199 or more
