RTX Dakota Digital Instruments, OEM Styling, for 65 - 66 Mustangs

SKU: RTX-65F-MUS-X

RTX Dakota Digital Instruments, OE Styled, for 1965 - 1966 Mustangs

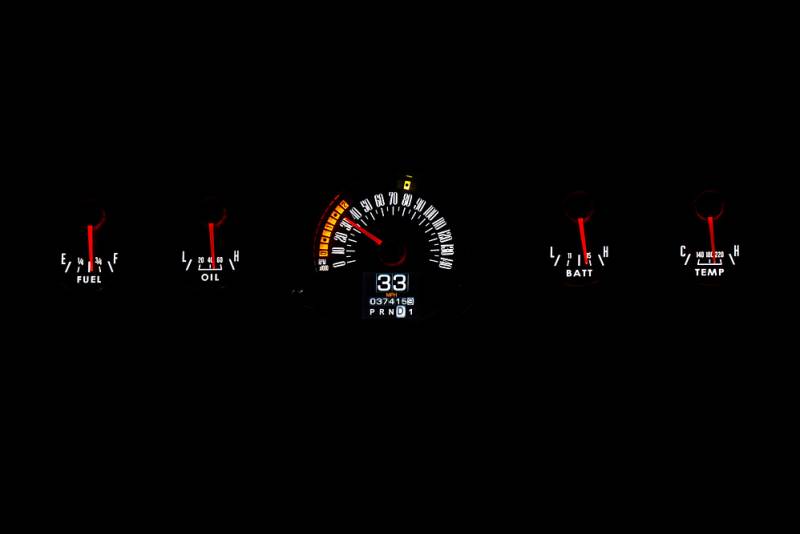

Outfit your 1965 - 1966 Mustang with an all new instrument system and purchase these Dakota Digital RTX Gauges to get the stock look but not sacrificing any of the modern features you love. Designed for GT and Pony Interiors these are a drop - in system and makes use of your stock or reproduction instrument housings and bezel. With a full color TFT message center and hidden LED bar graph type tach around the outside speedo sweep, but OEM styling you get to keep the vintage vibe but add the modern function. The TFT message centers will keep you informed of under-hood happenings and can be configured to your preferences.

Sold as KIT

Was: $1,645.00

Sale: $1,562.75

Save: 5%

Save: $82.25

Special Notes
Technical Notes
Details
Shipping
Documents
Reviews

Special Notes

Stang-Aholics is now offering Dakota Digitals RTX Instrument Systems! These gauges will give your Mustang the OEM look without sacrificing modern features. Here are a few things that set these RTX gauges apart from the rest.

RTX Gauge Features

TFT message centers- can be fully configured to display just about any piece of information needed
RTX series utilizes a central control box to make installation and setup as easy as possible
Retaining Stock Look without sacrificing the late-model features
LED Backlighting makes night visibility second to none

Get a set of RTX Dakota Digital gauges today for your 65 - 66 Mustang and see first hand, what this quality product offered by Stang-Aholics will do to improve your Mustangs interior!

Please Note: Instrument Bezel not included, you can use your existing bezel or we can provide a new reproduction bezel to complete your gauge upgrade!

Technical Notes

Analog Gauges

Speedometer

0 -140 MPH (optional metric version 0- 220 kmh)

Oil Pressure

0- 80 psi

Water Temperature

100- 260ºF (optional metric version 40- 120ºC)

Fuel Level

E, 1/4, 1/2, 3/4, F

Voltmeter

9- 17 VDC

Digital Bar Graph Gauges

Tachometer

0- 8,000 RPM

Digital Message Centers

Standard Displays

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0- 9,999.9)
Clock (12 hour)
Estimated Range/ Miles to Empty

Performance Meters

0- 60 MPH Timer (0- 100 kmh)
1/4 and 1/8 mile time
1/4 and 1/8 mile end speed (trap speed)
High speed recall
High RPM recall

Built-in Indicators

Indicators

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
Two Auxiliary input indicators with user-programmable labels
Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)

**Not all OEM indicator lamp functions will be replaced.

If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Lighting Technology

Colors

Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.

Brightness

Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.

Themes

With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.

Technology

Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice.

Included Sensors

Water Temperature

1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/ Generator

Replaces Ford and/ or GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required.

Bushings

Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration and Use

Pushbutton Control

Dakota Digital instrument systems are programmed and operated by the push of a button. A two-sided rocker switch is included with each package; mount this switch in an easily accessible location when in the driving position. The rocker switch provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center, or through the included buzzer. Once configured, this same switch is used to access the wealth of information located in the digital message centers.

Mobile App

RTX instrument systems can also be completely configured through the available mobile app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the RTX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display.

Calibration

All calibration settings are handled through the included pushbutton switch or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle.
