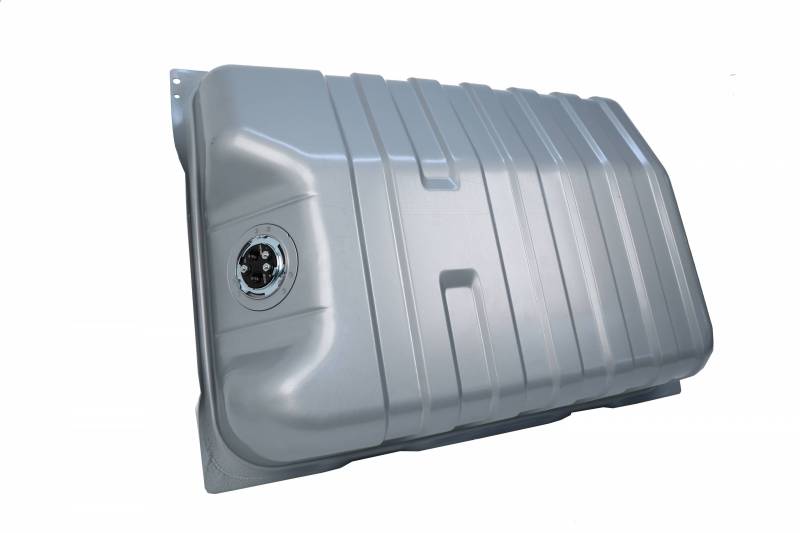

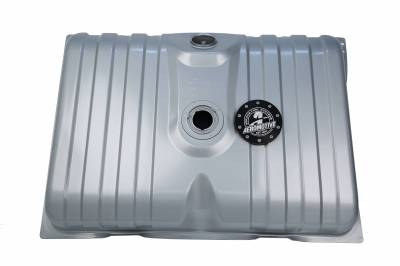

1971 - 1973 Mustang Gen II Stealth Fuel Tank, 340 LPH
1971 - 1973 Mustang Gen II Tank With Stealth 340 pump and 73-10 ohm sending unit
1971 1972 and 1973 Classic Mustang fuel tanks feature a 340 lph Stealth Fuel Pump and 73 - 20 ohm sending unit. Carb or EFI Compatible. 20 Gallon Capacity and utilizes OEM Fuel Outlet Locations and Seal. See below for more info and about RACE ONLY Application.
Sold as KIT
Special Notes
The new Gen II Stealth tank utilizes Aeromotive’s patented and award-winning Phantom in-tank technology that enables a quiet, high-flow EFI pump and baffle to maintain an ample fuel supply around the inlet of the pump while ensuring consistent fuel delivery and drivability even in low fuel conditions.
Unlike competitive tanks, Aeromotive’s Gen II Stealth tanks feature outlet and return ports along with electrical terminals positioned in the OEM location. This design enables flush installation to the vehicle floor and will not require strap modification or spacers.
All Gen II Stealth tanks come out of the box completely assembled. The fuel pump, fuel level sending unit, and fuel/electrical bulkhead are pre-installed. As a true plug-and-play assembly, the Aeromotive Gen II Stealth tank gets you out of the garage and on the road in no time.
P/N 18169 – 200lph Stealth Gen II Tank Application Specs:
- Fuel Injected Engines (gasoline):
- Up to 600 HP – naturally aspirated.
- Up to 450 HP – forced air induction.
- Carbureted Engines (gasoline):
- Up to 750 HP – naturally aspirated.
- Up to 600 HP – forced air induction.
P/N 18469 – 340lph Stealth Gen II Tank Application Specs:
- Fuel Injected Engines:
- Gasoline: up to 850 HP – naturally aspirated.
- Gasoline: up to 700 HP – forced air induction.
- E85: up to 595 HP – naturally aspirated.
- E85: up to 490 HP – forced air induction.
- Carbureted Engines:
- Gasoline: up to 1000 HP – naturally aspirated.
- Gasoline: up to 850 HP – forced air induction.
- E85: up to 700 HP – naturally aspirated.
- E85: up to 595 HP – forced air induction.
Product Features:
- Perfect for EFI and Carbureted engines
- OEM appearance and 20-gallon capacity
- High flow, quiet 200 or 340 Stealth fuel pump
- 73-10 Ohm fuel level sending unit included
- Billet hat with ORB-06 outlet and return ports
- Utilizes OEM fuel outlet location and seal
- Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control
- Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install
- Utilizes stock mounting straps, filler cap and vent
EPA Warning
AER-18469
Clean Air Act Title II Section 203 Code 7522(a)(3)
(A) for any person to remove or render inoperative any device or element of design installed on or in a motor vehicle or motor vehicle engine in compliance with regulations under this subchapter prior to its sale and delivery to the ultimate purchaser, or for any person knowingly to remove or render inoperative any such device or element of design after such sale and delivery to the ultimate purchaser; or
(B) for any person to manufacture or sell, or offer to sell, or install, any part or component intended for use with, or as part of, any motor vehicle or motor vehicle engine, where a principal effect of the part or component is to bypass, defeat, or render inoperative any device or element of design installed on or in a motor vehicle or motor vehicle engine in compliance with regulations under this subchapter, and where the person knows or should know that such part or component is being offered for sale or installed for such use or put to such use.
Video
Details
- AER-18469
- AER-18469
- Miscellaneous
- New
Shipping Information
- Item Requires Shipping
- 28.0 lbs.
- W26.0000” x H13.0000” x L36.0000”
- $49.00
- This item ships in its own box.
- This item ships in an oversize box. Flat Rate Shipping Applies.
