69 - 70 Mustang LED Digital Gauge Panel, Direct Replacement

SKU: ITE-DP7003

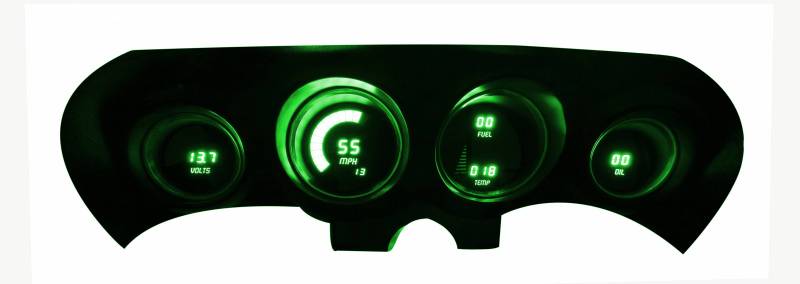

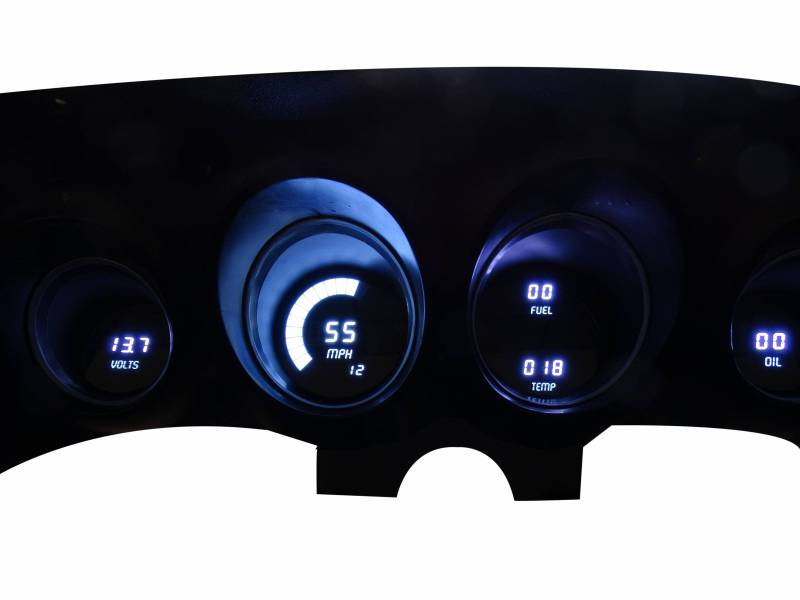

Direct-Fit 6 Gauge LED Digital Gauges/Instrument Set for 69 or 70 Mustang, Choose your Color Option

These Modern looking aftermarket LED Digital Gauges for your 69 or 70 Mustang is a direct fit to your stock instrument Bezel (Sold Separately) and will give your Classic Mustang a sleek custom feel with a more modern look. These digital instrument panels are complete and have direct fit printed circuit boards and smoked looked plexiglass lenses installed from the factory. The gauges also include a universal temperature, oil pressure, and speedometer sending units with sender and sensor for Mustangs that did not have an electronic transmission or cruise control. This aftermarket Gauge Panel will also have the turn signal and high beam indicators to keep those original functions on your Classic Mustang Dash. The gauges are a straight forward installation to the back of your 69 or 70 Mustang's original gauge cluster for a hassle-free installation, the panels also come with complete instructions.

These Gauges are made in the USA and also come with a LIFETIME WARRANTY to the original purchaser!

Sold as a KIT

Pricing: $459.95

Special Notes
Details
Shipping
Documents
Reviews

Special Notes

Fits: 1969 or 1970 Mustangs, and works with the ORIGINAL Gauge Bezel (Not Included and Sold Separately).

This 6 Gauges LED Instrument Set Features the following Gauges:

Digital Speedometer that reads up to 255 MPH w/ Trip Meter and Odometer!
- Features Single-Button Calibration, Regardless of Rear Wheel/Tire Size, Gear Ratio or Transmission, 0-60 Time, Quarter Mile Elapsed Time, and Highest Speed Re-Call, All of this Operates with a push of a Single Button! Speedometer can also be used with Electronic Cruise control senders or with the S9013 Speedo Sending Unit that is Included in the Package if your Classic Mustang is not equipped with Cruise Control!
Tachometer Gauge, Digital Read-out that Displays a range of 0-9900 RPM in 100 RPM Increments
Water Temperature Gauge, Digital Read-out that displays Temperature from 100-300 Degrees F range with an included Sending Unit.
Voltmeter Gauge, Digital Read-out that displays 7.0-18.5 Volts range and no sending unit is required
Oil Pressure Gauge, Digital Read-out that Displays a range of 0-100 PSI and comes with an Included Oil Pressure Sender Unit.
Fuel Level Gauge, Digital Read-out that shows a range of 0-99 Percent, and is shown in 1 Percent Increments. The included Fuel Gauges works with and is compatible with your existing Ford Fuel Level Sending Unit

AVAILABLE IN 4 DIFFERENT DISPLAY COLORS: RED, WHITE, BLUE, AND GREEN

ALL REQUIRED SENDING UNITS AND SENSORS FOR A STANDARD INSTALLATION IN YOUR CLASSIC MUSTANG ARE INCLUDED.

PLEASE NOTE: INSTRUMENT BEZEL SHOWN IN THE PICTURES IS NOT INCLUDED AND CAN BE PURCHASES SEPARATELY. WILL WORK WITH ALL 69 or 70 MUSTANG 5 GAUGE BEZEL, STANDARD OR DELUXE INTERIOR.
