64-73 Mustang Wilwood Compact Brake Master Cylinder, Black, 7/8 Bore

Includes Distribution Block & Proportioning Valve, Bracket and Lines

WEB-261-15522-BK

Wilwood Compact Brake Master Cylinder Kit Designed to work with 64-73 Mustangs with Non-Power Brake Pedals

We have packaged this new Compact Tandem Chamber Master Brake Cylinder from Wilwood with a push rod and eyelet designed to work with the stock Classic Mustang Non-power pedal. This master cylinder kit also comes with the Combination Proportioning Valve, Driver Side mounting bracket, pre-bent hard fluid tubes, and mounting hardware in a convenient kit. This Tandem Reservoir Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control in a VERY compact package with only 6.55 inches in length from the mounting flange face to the very end. Additionally, the slotted flange mounting and included pushrod clevis end make it a simple bolt-on for 1964 65 66 67 68 69 70 71 72, and 73 Mustangs and is compatible with manual system brake pedal applications. The included combination proportioning valve also substantially simplifies wiring and brake proportioning adjustments on classic Mustangs with aftermarket or custom brake systems!

Sold as KIT

Was: $507.92
Sale: $477.44
Save: 6%
Save: $30.48
Qty:
FREE SHIPPING on orders *$199 or more

Special Notes

Master cylinders with pushrods are generally intended for manual brake use and are available in two unique finishes, ball burnished (Polished) or black E-coat.

This compact master cylinder is great for applications with Tight clearances between the firewall and engine (Modular Engine swaps or Big Block Engines) or Mustangs where Power Brakes are hard to package with a stock style booster or because of a lack of engine vacuum.

This Master Cylinder Kit Has the Following Features/Benefits:

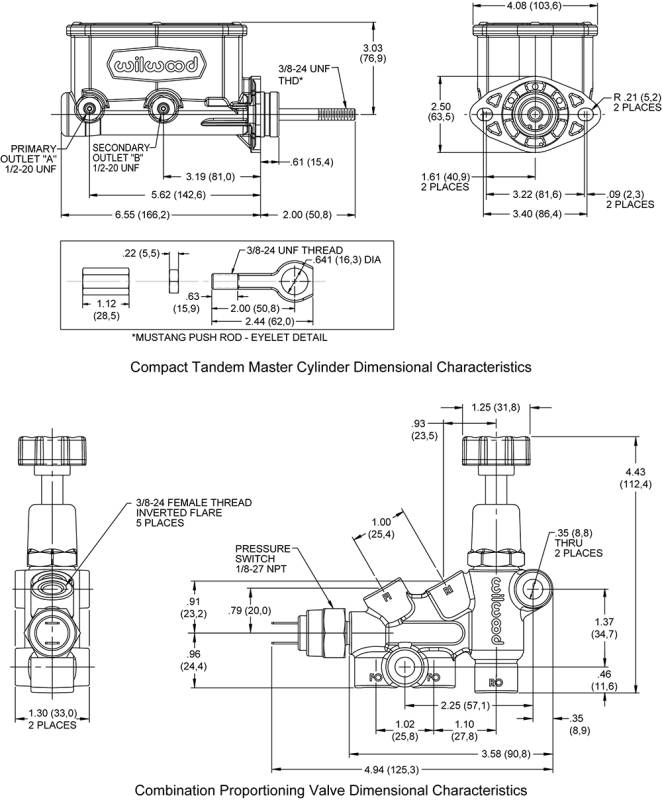

  • Compact Master Cylinder (Only 6.55 Inches Overall length), features the latest in Design and fluid control
  • A combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems.
  • The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder.
  • The combo valve and left-hand side bracket are black E-coated for a performance look and long-lasting durability.
  • Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder.
  • Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance.
  • Straight-forward and simple installation once the master cylinder is mounted and connected to the pedal, simply connect the fluid lines, bleed the system, and you're finished!

Details

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
  • W8.0000” x H8.0000” x L12.0000”
  • FREE SHIPPING on orders *$199 or more
  • This item ships in its own box.
