67-69 Mustang Wilwood 12 Inch Front and Rear Brake Kit, 4 Piston Dynalite Calipers

SKU: WEB-679-12-KIT

Wilwood Front and Rear Disc Brake Upgrade kit for 67-69 Mustang, 12.19 Drilled/Slotted Rotors with Dynalite 4 Piston Calipers

This Big Front and Rear disc Brake kit provides the added advantage of larger diameter brake rotors for traditional non-ABS spindles on 67 68 and 69 Classic Mustangs! These Wilwood Disc Brakes feature Forged billet Dynalite calipers, 12.19” diameter Cross Drilled and Slotted rotors, and high performance Wilwood brake pads that all help to generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of classic Mustangs. The Rear Disc Brake Kit features a neatly hidden internal shoe Parking brake system which provides a clean installation with superior static holding power for parking. Kit Also includes Braided Flex front brake lines and fittings and Rear parking brake cables and all fittings to attach to the assembly.

Sold as KIT

Pricing: $2,549.00

Customize Your Item

Choose Brake Caliper Color

- Choose Brake Caliper Color -

* required

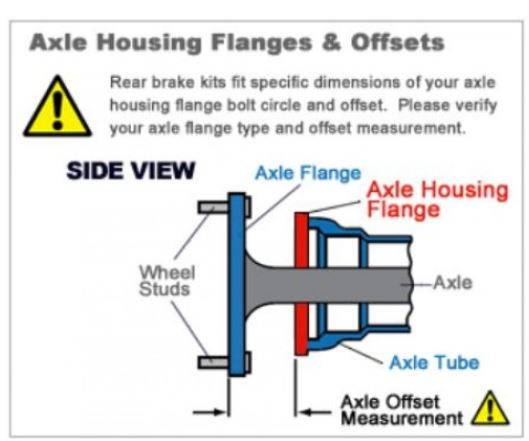

IMPORTANT: Please see the Flange Chart and Axle Offset Instructions in the "DOCUMENTS" Tab and Video instructions in "VIDEO" Tab for Identifying your Rear Axle Housing Flange

Choose Rear Axle Type

- Choose Rear Axle Type -

* required

Qty:

FREE SHIPPING on orders *$199 or more

Special Notes
Video
Details
Shipping
Documents
Reviews

Special Notes

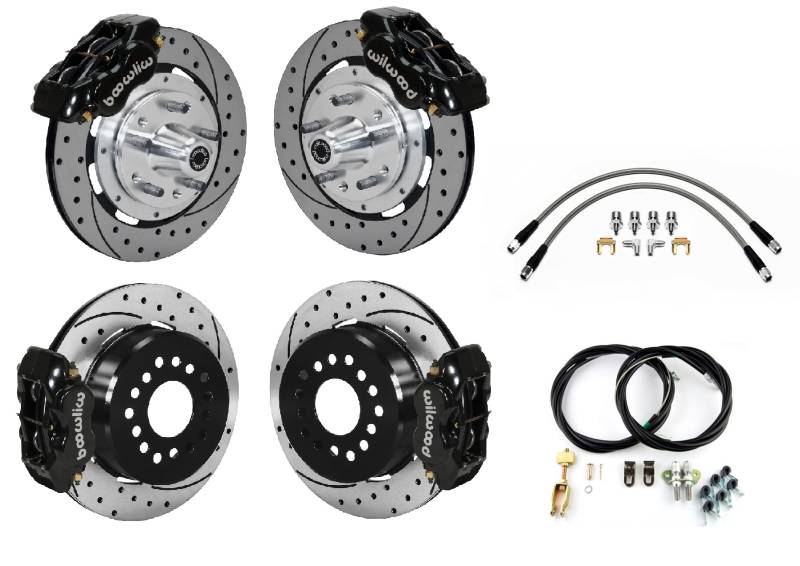

Wilwood Front/Rear Kit Includes:

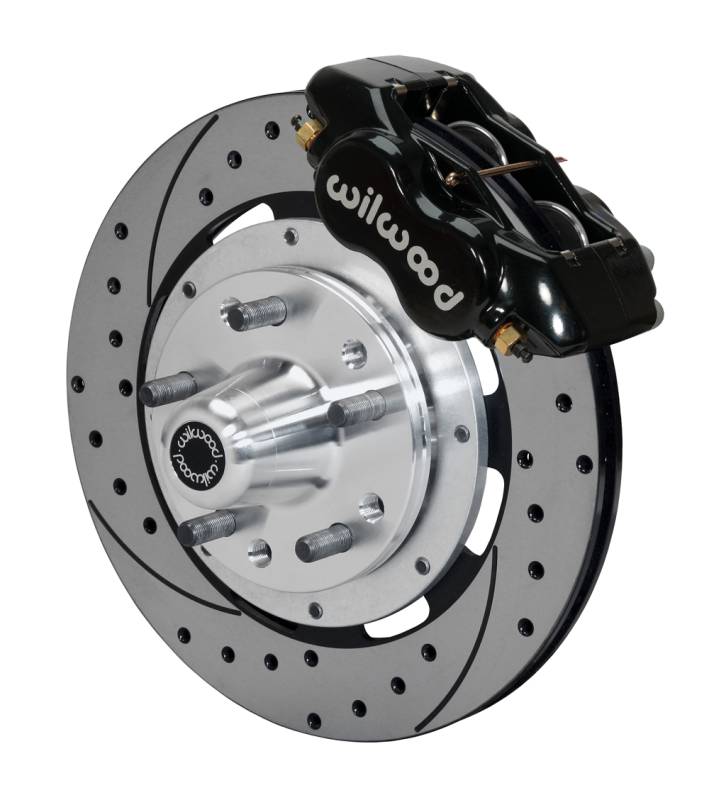

Front Dynalite 4 Piston Calipers (Red or Black) PLEASE NOTE: Front Brakes will work with original V8 Disc or Drum Spindles Only
Front 12.19″ Rotors, .81″ thick, Drilled and Slotted

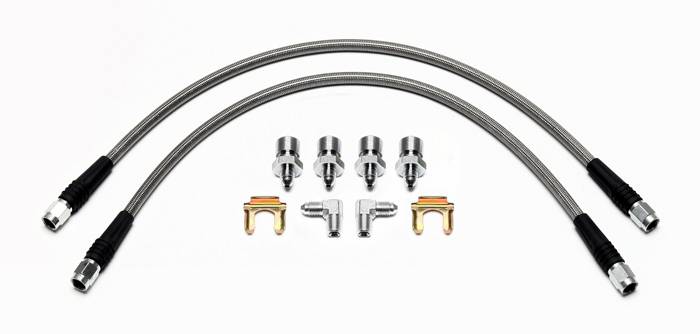

Front -3 Stainless Steel Braided Lines with fittings – 18″

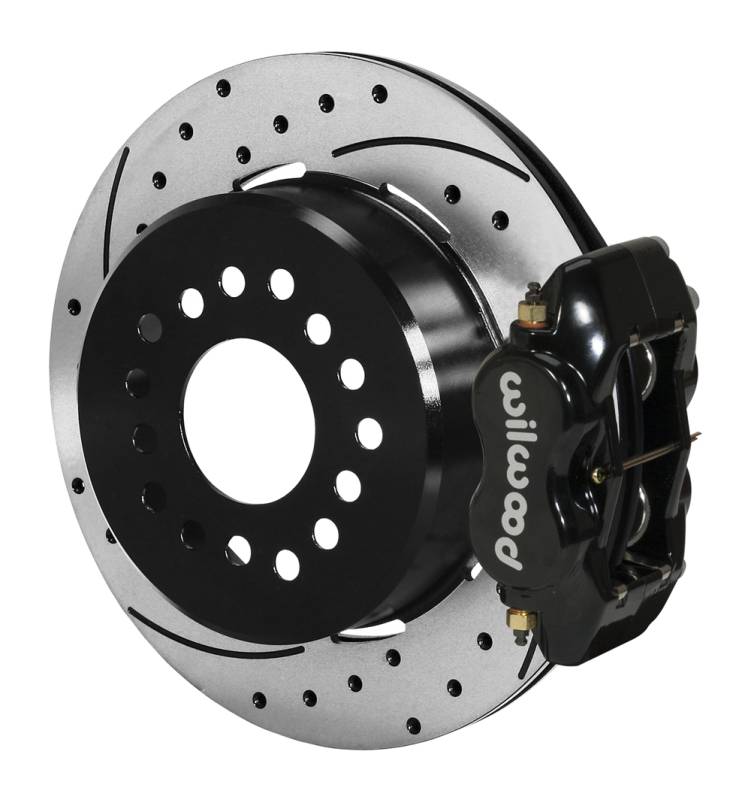

Rear Dynalite 4 piston Calipers (Red or Black)
Rear 12.19″ Rotors, .81″ thick, Drilled and Slotted with parking brake assembly

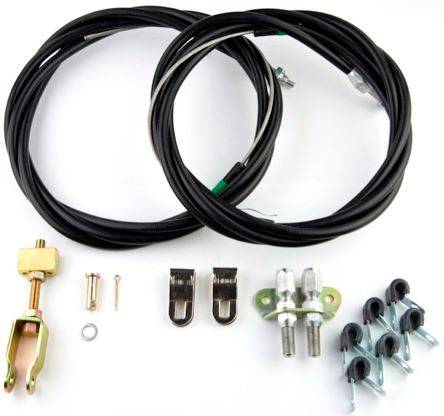

Parking Brake Cables with Brackets and Hardware

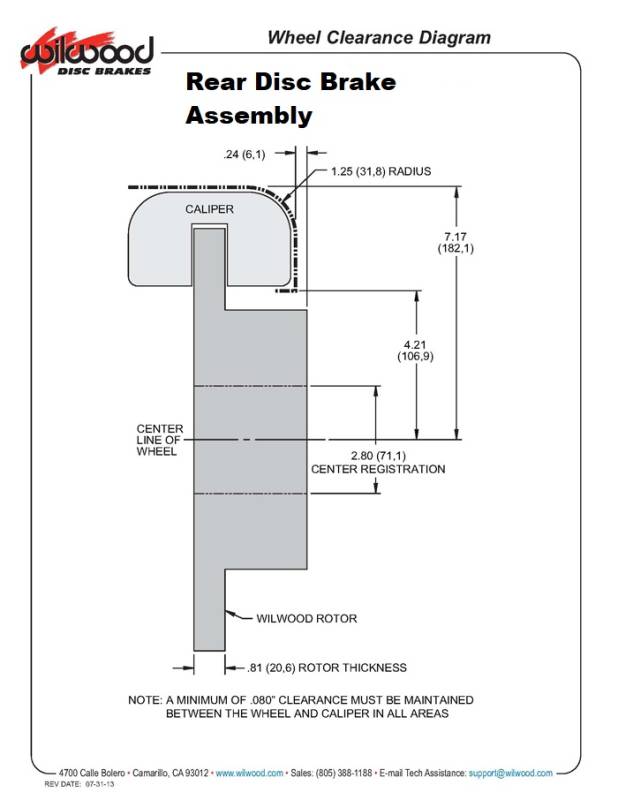

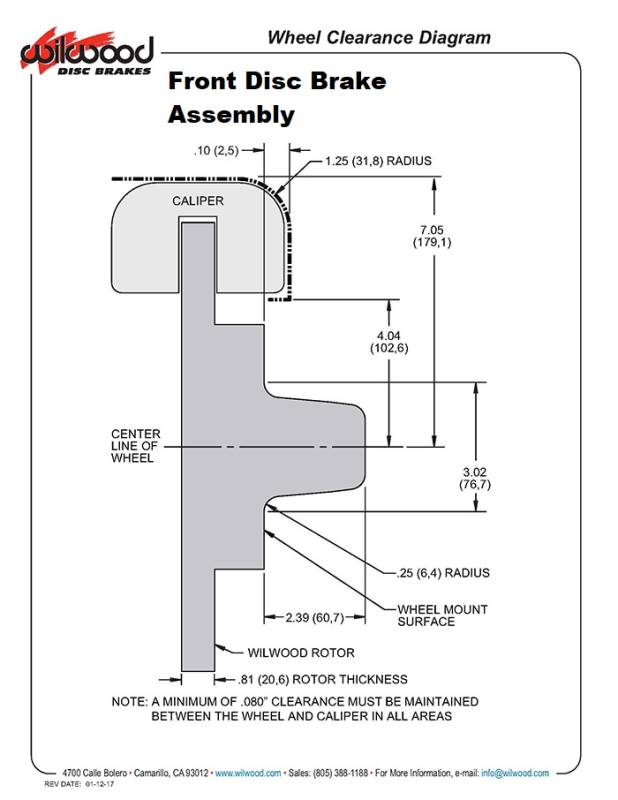

Wheel Clearance Notes: Will Clear MOST 16 Inch and Larger Wheels, MAY Clear some 15 Inch Wheel Designs, please use the Wheel Clearance Diagrams shown in the additional product images on this page to confirm your wheels will clear these brake assemblies.

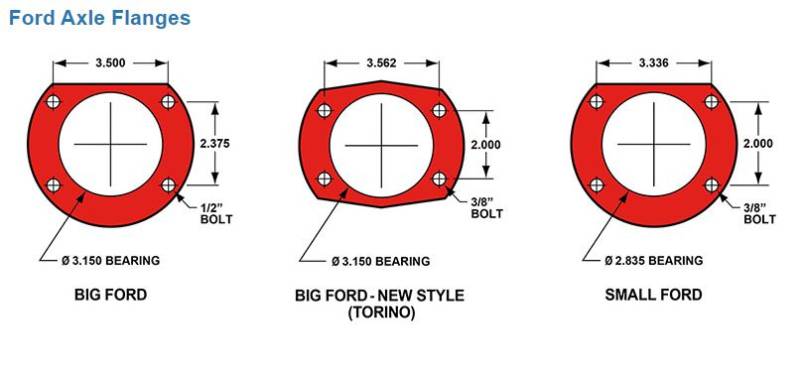

The REAR Brake Kit is offered for 3 different Rear Axle Flanges, PLEASE SEE THE VIDEO TAB ABOVE AND THE DOCUMENTS TAB FOR MEASUREMENT INSTRUCTIONS:

9″ Ford – Big Ford, New Style / Torino with 2.5″ Offset
8″ & 9″ – Big Ford – Old Style with 2.36″ Offset
8″ & 9″ – Small Ford with 2.5″ Offset
Other Variations Available Upon Request

INSTALL NOTE: When converting from drum brakes to to disc brakes a new Master Cylinder is required. The Wilwood Tandem Aluminum Master Cylinder is great looking all-in-one solution. They are available in 3 finishes; Bare, Black E-Coat and Media Burnished. Bore size selection is important to create the desired pedal feel, we have found the information below to be a good rule of thumb.
