Holley Complete Transmission Installation Kit, TKX/TKO 28 oz SBF

(0) Reviews: Write first review
HLY-319-600

Complete Transmission Installation Kit for Ford TKX/TKO 28-oz. Externally Balanced Small Block Ford Engines

These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 28-ounce externally balanced small-block Ford engine. Built with a mixture of our best brands including Lakewood, Hays and Mr Gasket. Kits include: A roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components.

Sold as KIT

Shipping: FLAT RATE SHIPPING APPLIES TO THIS ORDER
Was: $2,054.00
Sale: $1,847.95
Save: 10%
Save: $206.05
Qty:

Special Notes

These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 28-ounce externally balanced small-block Ford engine. Built with a mixture of our best brands including Lakewood, Hays and Mr Gasket. Kits include: A roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components.

Features:

  • Designed for 28-ounce balance Small Block Ford engines using a TKX or TKO transmission
  • Starter register hole = 4.084 inches
  • Light weight cast aluminum bellhousing and steel block plate provide a factory-like installation and appearance

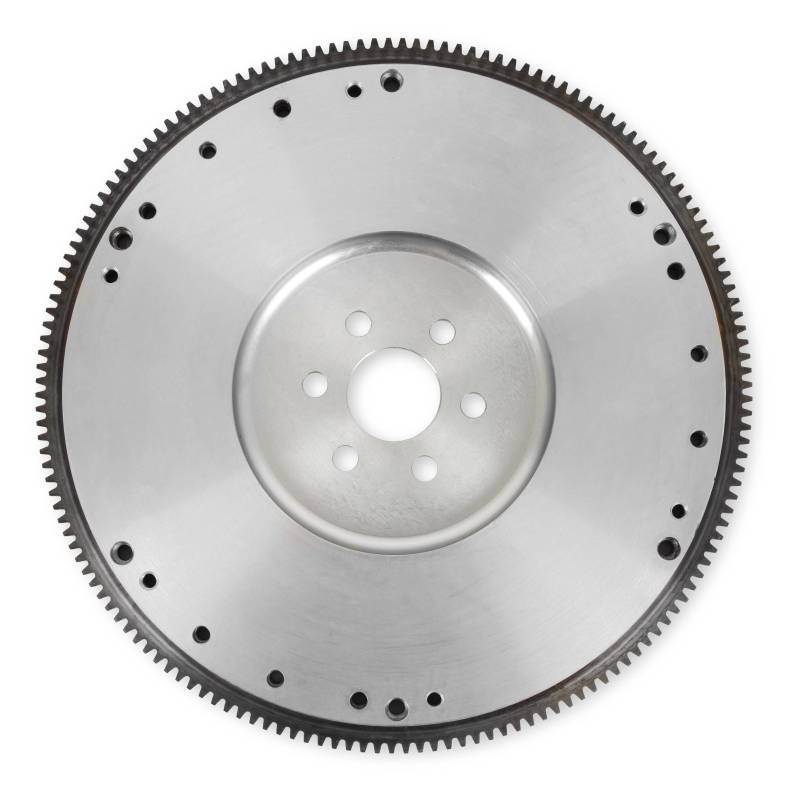

  • Billet steel, 24.5lb, 157 Tooth externally balanced flywheel for light weight and strength
  • 26 spline, 10.5-inch clutch disk offers superior clamping force for engines up to 500hp
  • Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear
  • Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation
  • Works with OE (original equipment) or MSD High Torque starters
  • All hardware included

Specs

SPECS
Bellhousing Material Aluminum
Brand Holley
Disc Diameter 10.5
Disc Material Organic
Disc Style Spring Hub
Emission Code 5
  6
Engine Ford 289
  Ford 302
  Ford 351C
  Ford 351W
  Ford Small Block
Engine Balance External
Engine Make Ford
Flywheel Balance 28-ounce External
Flywheel Material Billet Steel
Hardware Steel
Input Shaft Diameter 1-1/16 in.
Input Spline 26
Pilot Bearing Roller
Pressure Plate Style Diaphragm
Product Type Installation Kit
Release Bearing Hydraulic
Transmission TKO Ford
  TKX Ford
UPC 090127132623
Part Number 319-600
EMISSIONS
5

This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W9.0000” x H18.0000” x L34.0000”
  • $59.00
  • This item ships in its own box.
  • This item will require a special quote for shipping charges.
  • FLAT RATE SHIPPING APPLIES TO THIS ORDER
