65 - 73 Mustang Baer Brakes Remaster Master Cylinder, 15/16" Bore, Choose Body Finish

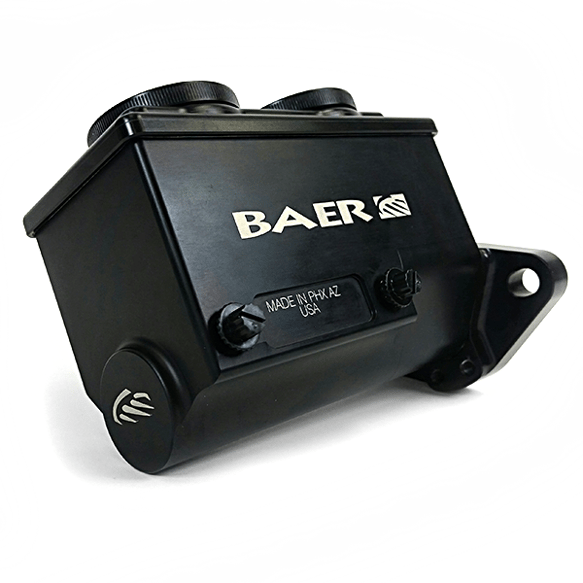

Upgrade your Mustang's braking system with the BAER Remaster master cylinder! This high-quality master cylinder is machined from 6061 T6 billet aluminum and features a compact, 1-piece body with left side ports and a 2-bolt mounting flange that fits many Ford and GM applications. The billet top is attached with 6 Allen screws and has two large knurled screw-on caps, making it easy to fill without any spills. With a unique outlet port design, the Remaster cylinder allows for either inverted flare (with included removable seats) or banjo-style straight fittings. It is compatible with most long and short boosters, with included bullet, or manual (non-power) brake applications. Optional proportioning valves are also available, see options on this product page. Upgrade your classic Mustang braking system with the Remaster master cylinder and feel the difference in your vehicle's stopping power!

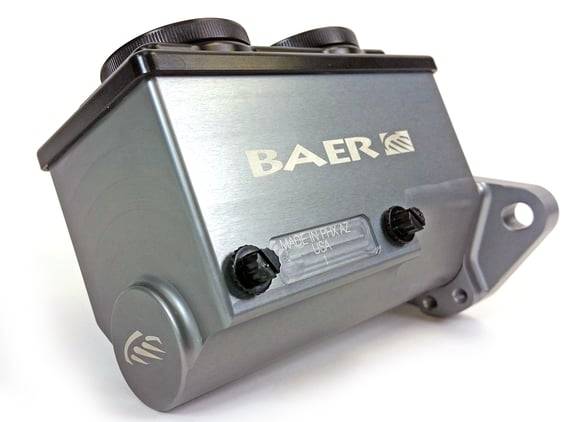

Remaster Body: Hard Anodized Black or Grey

Remaster lid: Hard Anodized Black

Remaster Caps: Hard Anodized Black

Bore Size: 15/16"

Area: 0.97"

Stroke: 1.3"

Volume Ratio: 2:1

Reservoir Size: 7oz per reservoir, Fill to 75% or 5.25oz per reservoir

Port Size: 3/8-24 Inverted flare w/inserts or straight w/o inserts

Port Exit: Left side

Flange Type: 2 Bolt GM/Ford

INSTALL NOTE: A proportioning valve is recommended on 4-wheel disc brake applications without ABS and Baer has two style valves to choose from. The Remaster specific valve has a one-piece body with an integral mount designed to locate the valve directly under the Remaster.
