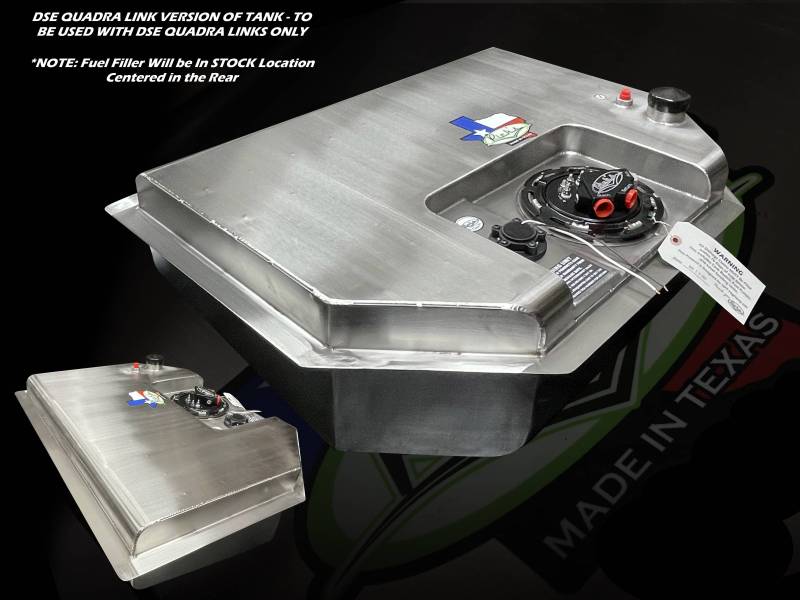

67-68 Mustang Stainless Steel Fabricated Fuel Tank, 22 Gallon

(0) Reviews: Write first review
RFT-3113-678

Stainless Steel Fuel Tank for 67-68 Mustangs, 304 Stainless Steel Construction, 22 Gallon Capacity

Enhance your 1967 or 1968 Classic Mustang's fuel system with a stainless steel 22-gallon capacity fuel tank. These tanks are TIG-welded and hand-made using 304-grade stainless steel. Designed to accommodate an electric internal fuel pump for an upgrade to EFI or a high-horsepower carbureted engine application. These tanks include a specially designed internal chamber around the pump to help prevent fuel starvation and flow is provided through -6 supply and return ports. Additionally, Rick's tanks utilize a unique internal baffle design to help control slosh during spirited driving situations. The tanks feature integrated external mounting flanges made from thick CNC-machined stainless steel for a straightforward installation into the stock trunk location of your classic Mustang.
Refer to the options below for pump assemblies and custom configuration options.

Availability: This Item is Made to Order. Please allow approximately 6-8 Weeks for shipping.
Shipping: Ships via UPS Ground Oversize
Pricing: $1,529.00

Customize Your Item

- Choose A Fuel Pump -
 * required
- Choose A Sending Unit -
 * required
Qty:

Description

Stainless Steel Fuel Tank for 65-66 Mustangs, 304 Stainless Steel Construction, 22 Gallon Capacity

Enhance your 1965 or 1966 Classic Mustang's fuel system with a stainless steel 22-gallon capacity fuel tank. These tanks are TIG-welded and hand-made using 304-grade stainless steel. Designed to accommodate an electric internal fuel pump for an upgrade to EFI or a high-horsepower carbureted engine application. These tanks include a specially designed internal chamber around the pump to help prevent fuel starvation and flow is provided through -6 supply and return ports. Additionally, Rick's tanks utilize a unique internal baffle design to help control slosh during spirited driving situations. The tanks feature integrated external mounting flanges made from thick CNC-machined stainless steel for a straight-forward installation into the stock trunk location of your classic Mustang.
Refer to the options below for pump assemblies and custom configuration options.

Special Notes

Product Features and Benefits:

  • Constructed entirely of stainless steel and manufactured in the USA using domestically sourced materials.
  • Features a unique baffling system to minimize fuel slosh, with baffling running front to rear and side to side.
  • Tank centers are precisely carved out using CNC machines and are application-specific.
  • CNC machine-formed and TIG welded for superior quality.
  • Equipped with a unique fuel chamber that keeps fuel at the pump, minimizing starvation, lean conditions, and stalling.
  • Brushed finish for easy maintenance and long-lasting appearance.
  • Multiple pump combinations available to meet various engine horsepower requirements.
  • Available with Front Lower Corners Angled 45 Degrees for Better Exhaust Clearances for Aftermarket Suspensions and Larger Diameter Tubes
  • Five-year warranty on workmanship.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 65.0 lbs.
  • W48.0000” x H14.0000” x L35.0000”
  • $195.00
  • This item ships in its own box.
  • This item will require a special quote for shipping charges.
  • Ships via UPS Ground Oversize
