64 - 66 Mustang Six Gauge Round, Analog HDX Instrument, Silver Alloy Gauge Face

SKU: HDX-2060-S

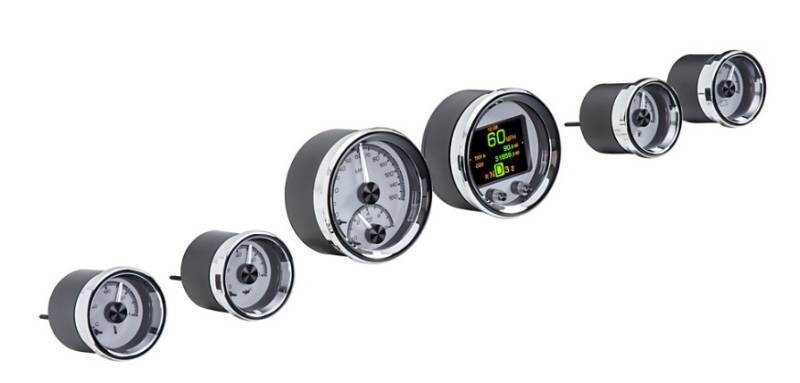

64 - 66 Mustang 6 Gauge Round Analog HDX Instruments, Silver Alloy Gauge Faces

HDX technology in a timeless arrangement! Whether you have an existing panel that needs to be updated, or you’re scratch building your dream, this six-gauge set offers the utmost in flexibility! The speedometer/tach and TFT message center each drop into 3 3/8” holes, while their matching satellites spec out at 2 1/16”; the HDX-2060 requires 2” of depth behind your panel. Machined mounting cups secure the gauges to your panel, attached with supplied thumb nuts. That full-color TFT message center can display as much information as you like!

Sold as KIT

Was: $1,545.00

Sale: $1,467.75

Save: 5%

Save: $77.25

Special Notes
Technical Notes
Details
Shipping
Documents
Reviews

Special Notes

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series!

Technical Notes

Analog Gauges

Speedometer	0-160 MPH
Tachometer	0-8,000 RPM
Oil Pressure	0-80 psi
Water Temperature	100-260°F
Fuel Level	E, 1/4, 1/2, 3/4, F
Voltmeter	9-17 VDC
Clock	12 Hour Analog Clock Movement

Digital Message Centers

Standard Displays	Odometer (One Time User Settable, Million Mile) Dual (A/B) Trip Meter (0 - 9,999.9) Clock (12 Hour) Estimated Range/Miles to Empty
Performance Meters	0 - 60 MPH Timer (0-100kmh) 1/4 Mile and 1/8 Mile Time 1/4 Mile and 1/8 Mile End Speed (Trap Speed) High Speed Recall High RPM Recall
Colors	Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color
Brightness	Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.
Themes	With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.
Technology	Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice

Built-In Indicators

Indicators

Turn Signal (L/R)

High Beam

Check Engine

Parking Brake

Cruise Control (On/On & Engaged when vehicle is equipped)

Gear Position (Optional GSS-2000 Sensor Required)

4 X 4 (When Vehicle is Equipped)

Wait to Start (When Vehicle is Equipped)

Two Auxillary Input Indicators with User-Programmable Labels

Each Analog Gause Sweep Contained a Red LED Indicator for Quick Notice of a Warning Condition (Except Speedometer)

*Not all OEM indicator lamp functions will be replaced.

If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Water Temperature

1/8" NPT, Ground Isolated Sensor with a 10 FT Harness

Oil Pressure

1/8" NPT Solid State Sensor with a 10 Ft Harness

Cable Driven Speed Sensor/Generator

Replaces GM Style Speedometer Cables with a 10 FT Harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)

Bushings

Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

PushButton

All HDX Series Instrument Systems include LED-lit onboard capacitive touch pushbuttons through the gauge face. These pushbuttons provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center, or through the included buzzer. Additionally, remote mounted switches can be wired into the HDX system if this proves more accessible based upon seating position. The HDX Series can also be completely configured through the Bluetooth app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the HDX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display.

Calibration

All calibration settings are handled through onboard capacitive touch switches or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle.
